5KN - 250KN Swivel Joint Pilot Wire Conductor Stringing Tools Transmission Line
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SLX-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Swivel Joint | Item No.: | 17121-17130 |
|---|---|---|---|
| Rated Load: | 5-250KN | Weight: | 0.2-8KG |
| Warranty: | 1 Year | ||
| Highlight: | 5KN Swivel Joint Pilot Wire,250KN Pilot Wire,250KN Conductor Stringing Tools |
||
Product Description
Swivel Joint Conductor Stringing Tools Transmission Line Stringing Tools
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
Feature 1. High strength, light weight, and good looking. 2. It smoothly can pass through the corners, pulley, tension machine, traction machine and other equipments. Applicatoin Fixed Joint Anti-twist Connector is suitable to traction of connecting anti-twisting wire rope.In transmission line, traction of wire or underground cables, it is used to connect with the net sleeve and wire rope, in order to release wire rope twisting.transmission line, traction of wire or underground cables, it is used to connect with the net sleeve and wire rope, in order to release wire rope twisting
| Item number | Model |
Rated Load (KN) |
Main Size (mm) |
Weight (Kg) |
||||

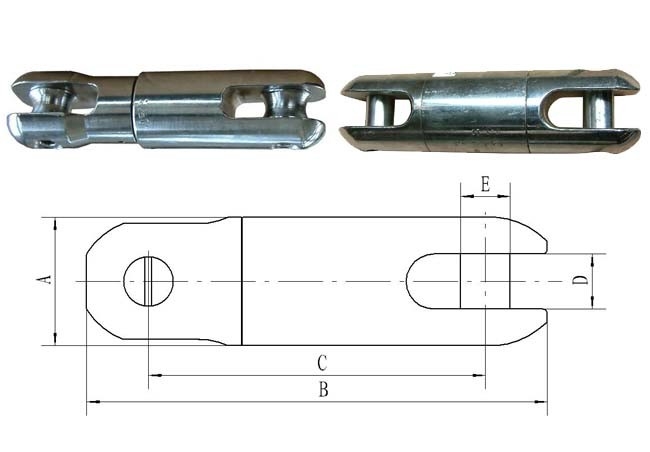

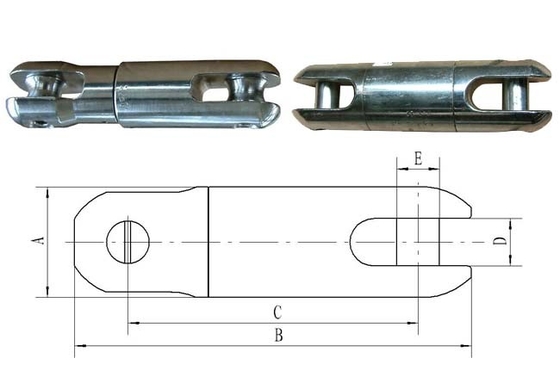

| A | B | C | D | E | ||||
| 17121 | SLX-0.5 | 5 | 19 | 61 | 40 | 8 | 9 | 0.20 |
| 17122 | SLX-1 | 10 | 30 | 100 | 70 | 12 | 13 | 0.40 |
| 17123 | SLX-2 | 20 | 35 | 120 | 90 | 14 | 14 | 0.55 |
| 17124 | SLX-3 | 30 | 37 | 129 | 95 | 16 | 16 | 0.65 |
| 17125 | SLX-5 | 50 | 42 | 154 | 116 | 18 | 17 | 1.50 |
| 17126 | SLX-8 | 80 | 57 | 220 | 165 | 24 | 22 | 2.40 |
| 17127 | SL130 | 130 | 62 | 248 | 192 | 26 | 24 | 3.50 |
| 17128 | SL180 | 180 | 75 | 294 | 222 | 26 | 26 | 7.20 |
| 17129 | SL250 | 250 | 85 | 331 | 251 | 30 | 30 | 10.5 |
| 17130 | SL250V | 250 | 80 | 323 | 243 | 30 | 30 | 8.0 |
