9mm - 42mm Transimission Line Pilot Wire Galvanized Braided Anti Twisting Steel Wire Rope
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | 12-18 Strand |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 M |
|---|---|
| Price: | Negitoable |
| Packaging Details: | In Bulk |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 10000M/Month |
|
Detail Information |
|||
| Name: | Anti-Twisting Braided Steel Rope | Structure: | 12 Strand /18 Strand |
|---|---|---|---|
| Diameter: | 9-42mm | Breaking Force: | 54-817 |
| Weight: | 0.3KG/M-4.08KG/M | Notes: | The Specification And Length Of Steel Can Custom According To Your Request |
| Feature: | Made Of High Strength Galvanized Steel Wire. It Doesn't Turn When It's Turn Round.Soft Not Broken Strand. | ||
| Highlight: | 9mm Pilot Wire,42mm Transimission Line Pilot Wire,Anti Twisting Steel Wire Rope |
||
Product Description

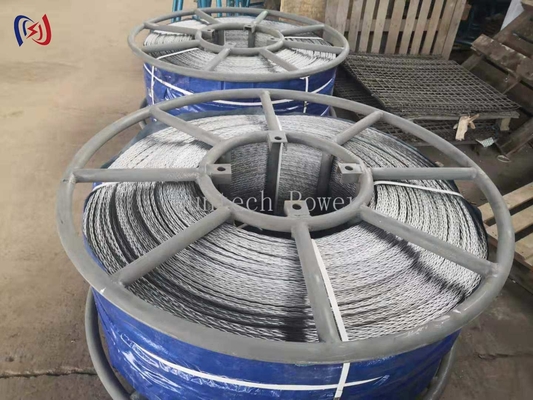

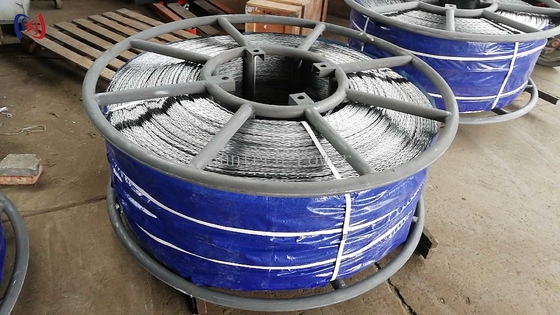

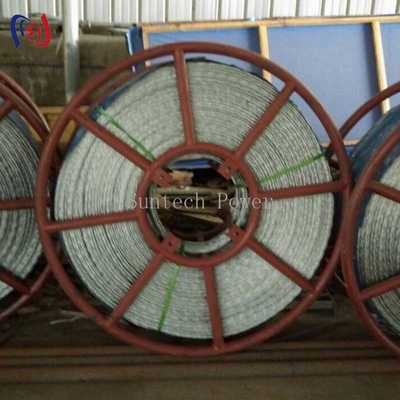

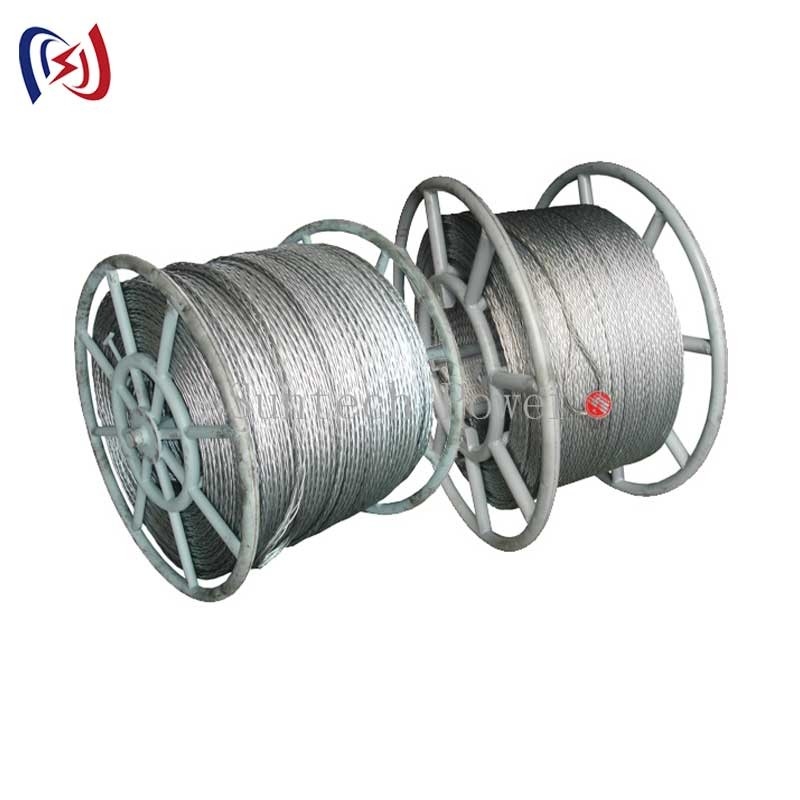

9-42mm Transimission Line Pilot Wire Galvanized Braided Anti Twisting Steel Wire Rope
Application
Applied to mechanical pulling and tensioning release conductors, unsuitable to pulling ropes for small diameter winch.It is braided 1960MPa high-strength galvanized steel wire.
Rotation resistance during pulling. Supple and disperse resistance.
Notes
The specification and length of steel can custom according to your request
Feature
Made of high strength galvanized steel wire.
It doesn't turn when it's turn round.Soft not broken strand.
| Item number | Structure | Diameter | Breaking Force | Weight |
| 18117 | 12 Strand | 9 | ≥54 | 0.3 |
| 18118 | 11 | ≥81 | 0.45 | |
| 18119 | 13 | ≥115 | 0.58 | |
| 18120 | 15 | ≥157 | 0.82 | |
| 18121 | 18 | ≥205 | 1.03 | |
| 18122 | 20 | ≥260 | 1.33 | |
| 18123 | 23 | ≥320 | 1.63 | |
| 18124 | 25 | ≥387 | 2.03 | |
| 18125 | 27 | ≥461 | 2.37 | |
| 18126 | 28 | ≥520 | 2.6 | |
| 18127 | 30 | ≥560 | 3.12 | |
| 18140 | 21 | ≥173 | 0.87 | |
| 18141 | 18 Strand | 24 | ≥236 | 1.24 |
| 18151 | 27 | ≥309 | 1.55 | |
| 18152 | 30 | ≥389 | 1.99 | |
| 18153 | 33 | ≥481 | 2.45 | |
| 18154 | 36 | ≥581 | 3.05 | |
| 18155 | 39 | ≥692 | 3.56 | |
| 18156 | 42 | ≥817 | 4.22 |
