ACSR70 Conductor Cable Pulling Grips Mesh Sock Joints Stringing Tools For Transmission Line
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SLW-1.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Conductor Mesh Sock Joints | Item No.: | 17161-17169 |
|---|---|---|---|
| Applicable Conductor(ACSR): | ACSR70-1250 | Rated Load: | 15-120KN |
| Breaking Load: | 30-250KN | Warranty: | 1 Year |
| Uses: | Apply To Connecting And Grip Various SCSR In Releasing Wires. It Can Pass Through Various Stringing Block Or Tensioning Wheel. | ||
| Highlight: | Conductor Cable Pulling Grips,ACSR70 Mesh Sock Joints,ACSR1250 Stringing Tools For Transmission Line |
||
Product Description

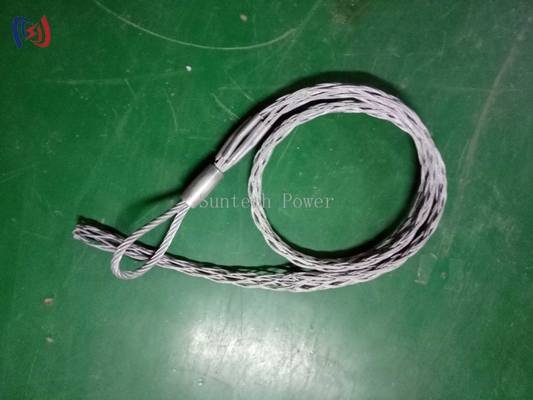

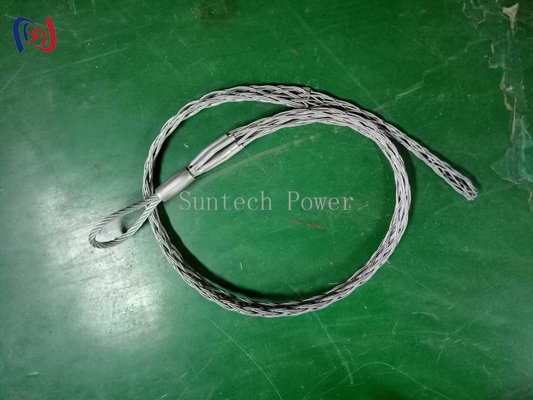

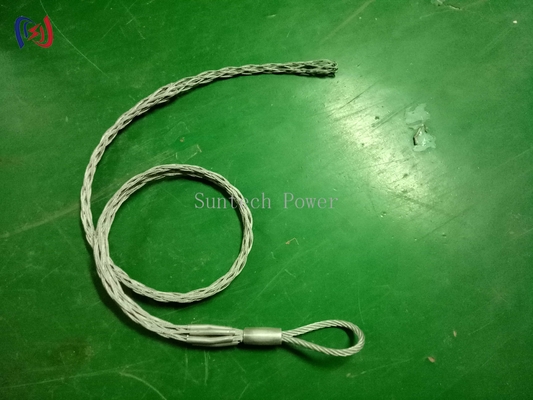

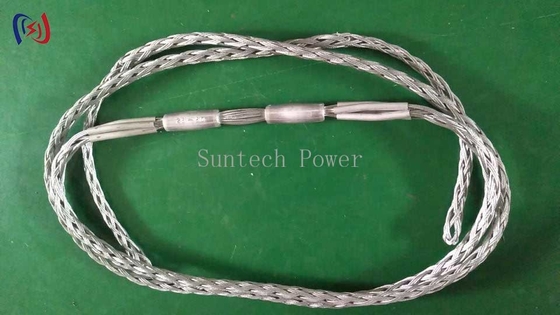

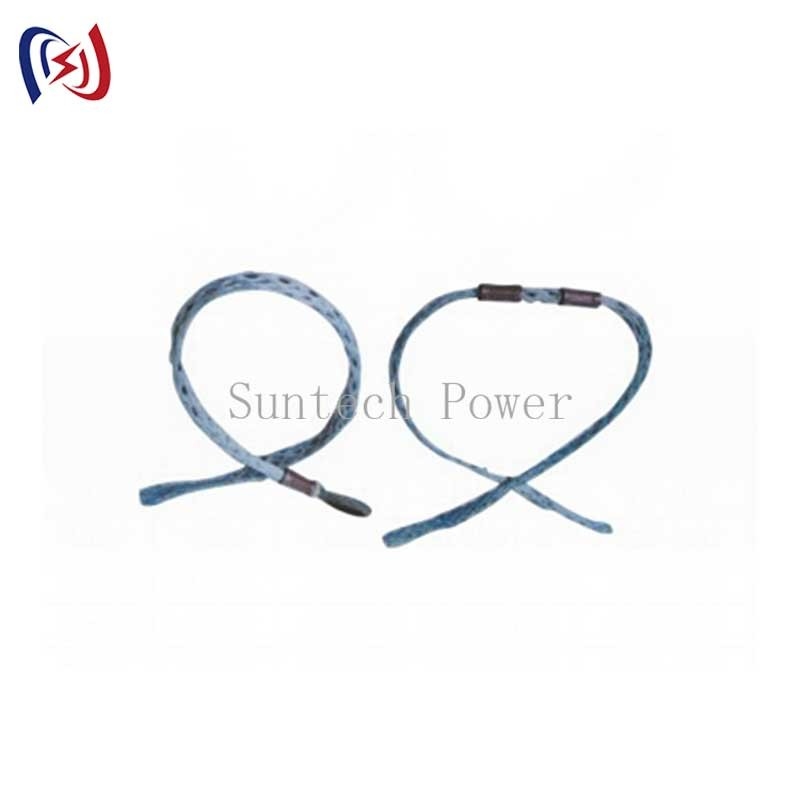

Conductor Mesh Sock Joints Stringing Tools For Transmission Line
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
Feature
1.As well as advantages of light weight, large tensile load, not damage line, convenient to use and so on.It is also soft and easy to strench.
2.The most ideal tool for electric power construction. Applicatoin Hot sale cable pulling hoisting grip,cable sock is used for buried or pipe traction on ground power cables.
3.It can pass all kinds of pay-off pulley. Use Method First press the opening of the net sleeve with the palm of your hand to open it, then start to wear the cable inward.
4.The deeper the cable is worn, the greater the pulling force. The mesh body of the net sleeve is in the form of a grid, and the tension is tightened during construction.
5.After the construction is completed, you only need to apply force in the opposite direction to remove the net sleeve. The net sleeve can be pulled by hand or lifting tool to achieve the function of wiring and protecting the cable.
Technical Data
|
Item number
|
Model
|
Applicable Conductor(ACSR)
|
Rated Load
(KN)
|
|
|
Single head
|
Double head
|
|||
|
17161
|
17181
|
SLW(S)-1.5
|
ACSR70-95
|
15
|
|
17162
|
17182
|
SLW(S)-2
|
ACSR120-150
|
20
|
|
17163
|
17183
|
SLW(S)-2.5
|
ACSR185-240
|
25
|
|
17164
|
17184
|
SLW(S)-3
|
ACSR300-400
|
30
|
|
17165
|
17185
|
SLW(S)-4
|
ACSR500-600
|
40
|
|
17166
|
17186
|
SLW(S)-5
|
ACSR720
|
50
|
|
17167
|
17187
|
SLW(S)-7
|
ACSR900
|
70
|
|
17168
|
17188
|
SLW(S)-8
|
ACSR1000-1120
|
80
|
|
17169
|
17189
|
SLW(S)-12
|
ACSR1250
|
120
|
