5 - 21RPM Powered Winch 3 - 9M/Min Belt Drive Diesel Engine
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | JJC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000 SET/Month |
|
Detail Information |
|||
| Name: | Powered Winch (Belt Drive) | Rotational Speed: | 5-21RPM |
|---|---|---|---|
| Traction Speed: | 3-9M/min | Tractive Force: | 1.8-8T |
| Power: | 2.94-9.6KW | Weight: | 108-230KG |
| Warranty: | 1 Year | ||
| Highlight: | 21RPM Powered Winch,Powered Winch 3M/min,9M/min Belt Drive Diesel Engine |
||
Product Description

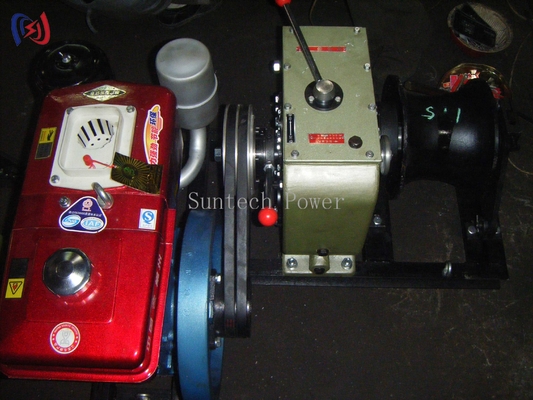

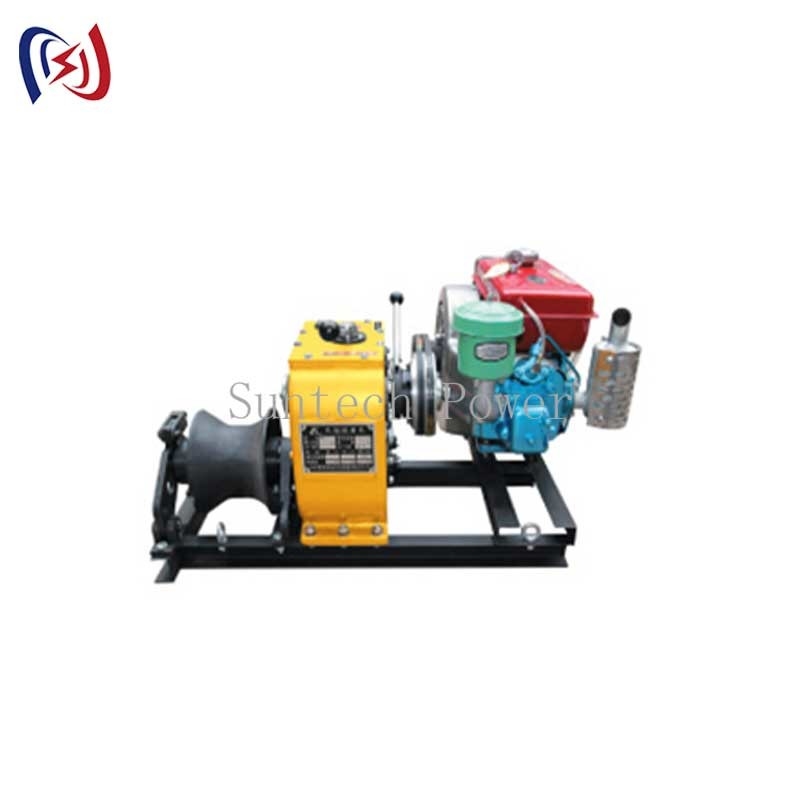

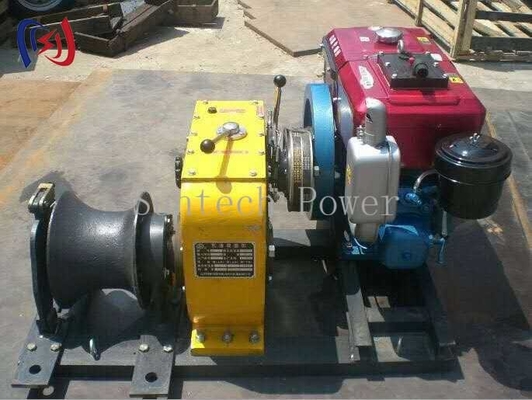

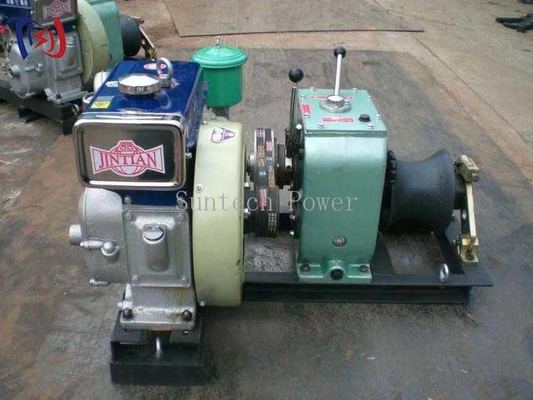

Powered Winch Belt Drive Diesel Engine Transmission Line Stringing Tools
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
Uses:Suitable for the construction of the tower line,traction line,tight line operation,laying cable.
Explain:Power can be configured according to used requirements.
| Item No. | Model |
Rotation direction |
Gear | rotational speed(BPM) | Traction speed(M/MIN) | Tractive force(T) | Power(KW) | Outline size(MM) | Weight(KG) |
| 09121A |
JJC-30 170F Diesel engine |
corotation | I slow | 11.5 | 5.0 | 3.0 | 2.94 | 840*600*500 | 108 |
| Ⅱ fast | 21.0 | 9.0 | 1.8 | ||||||
| reversal | reverse | 10.0 | 4.5 | No lifting | |||||
| 09123A |
JJC-50 186F Diesel engine |
corotation | I slow | 8.0 | 4.5 | 5.0 | 6.63 | 1000*750*600 | 168 |
| Ⅱ fast | 19.0 | 11.0 | 2.3 | ||||||
| reversal | reverse | 10.0 | 5.5 | No lifting | |||||
| 09125A |
JJC-80 13HP Diesel engine |
corotation | I slow | 7 | 4 | 8 | 9.60 | 1050*750*630 | 230 |
| Ⅱ fast | 13 | 7.5 | 4 | ||||||
| reversal | reverse | 6.5 | 3.7 | No lifting |
