0.6T - 5T Cable Winch Machine Shaft Drive Engine Gasoline Transmission Line Stringing Tools
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | JJC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000 SET/Month |
|
Detail Information |
|||
| Name: | Fast Power Winch (Shaft Drive) | Item No.: | 09131A/ 09135A |
|---|---|---|---|
| Tractive Force: | 0.6-5T | Traction Speed: | 4-24M/min |
| Power: | 2.94-6.63KW | Weight: | 115/148KG |
| Warranty: | 1 Year | ||
| Highlight: | 0.6T Cable Winch Machine,5T Cable Winch Machine,5T shaft drive engine |
||
Product Description

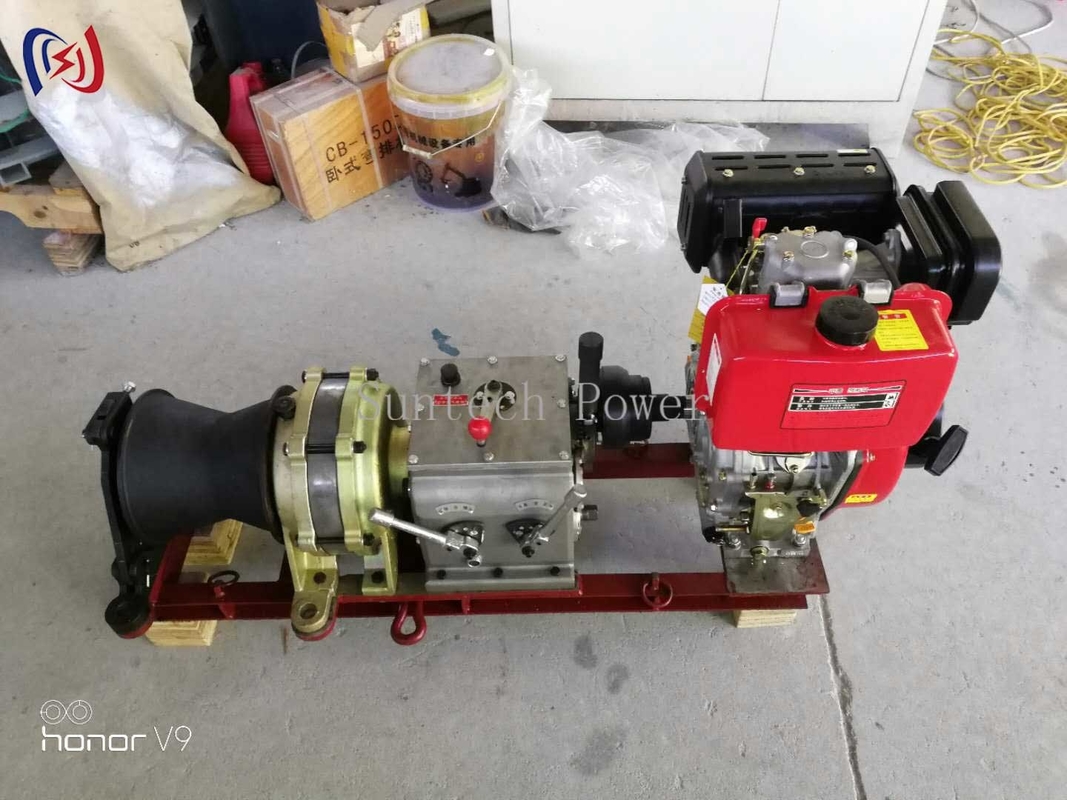

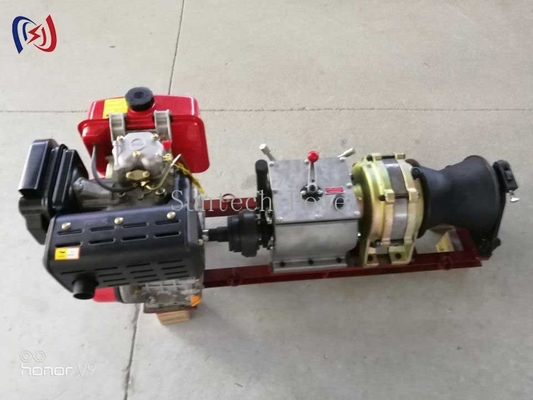

Fast Powered Winch Shaft Drive Gasoline Engine Transmission Line Stringing Tools
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
Uses:Suitable for the construction of the tower line,traction line,tight line operation,laying cable.
Explain:Power can be configured according to used requirements.

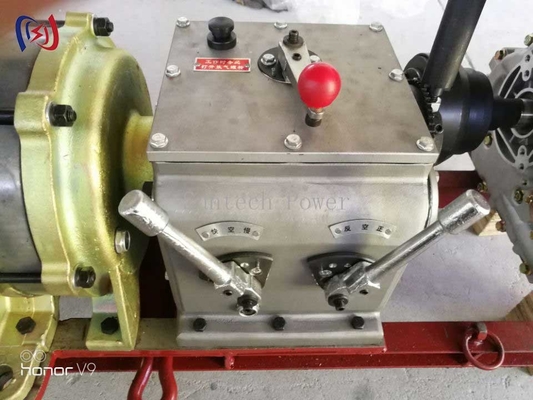

Feature:Shaft direct connection drive,compact structure,fast traction speed.
| Item No. | Model |
Rotation direction |
Gear |
Tractive force(T) |
Traction speed (M/MIN) |
Power(KW) |
Outline size(MM) |
Weight(KG) |
| 09131A |
JJC-3 5HP Diesel engine |
corotation | Slow Ⅰ | 3.0 | 5 | 2.94 | 1000*450*500 | 115 |
| Slow Ⅱ | 2.0 | 7 | ||||||
| Fast Ⅰ | 0.9 | 16 | ||||||
| Fast Ⅱ | 0.6 | 24 | ||||||
| reversal | Slow | No lifting | 4 | |||||
| Fast | 13 | |||||||
| 09135A |
JJC-5B 186F Diesel engine |
corotation | Fast Ⅰ | 0.9 | 24 | 6.63 | 1000*498*600 | 148 |
| Fast Ⅱ | 1.5 | 13 | ||||||
| Slow Ⅰ | 2.5 | 8 | ||||||
| Slow Ⅱ | 5.0 | 4 | ||||||
| reversal | Slow | No lifting | 4 | |||||
| Fast | 18 |
