6.5-16RPM Cable Pulling Winch Electric Cable Winch Puller Transmission Line Stringing Tools
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | JJQ-30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Cable Pulling Winch | Item No.: | 08155/08156 |
|---|---|---|---|
| Rotational Speed: | 6.5-16RPM | Traction Speed: | 4-9M/Min |
| Tractive Force: | 3-5T | Power: | 4.04/ 6.61KW |
| Weight: | 100/150KG | Warranty: | 1 Year |
| Highlight: | 6.5RPM cable pulling winch,16RPM cable pulling winch,electric cable winch puller |
||
Product Description

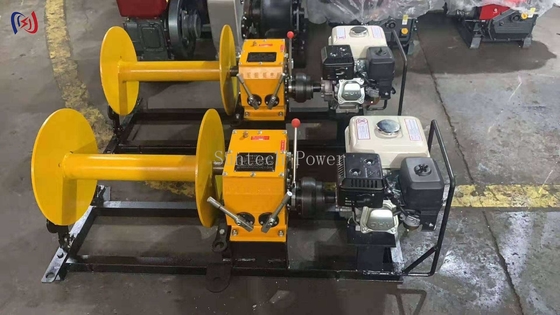

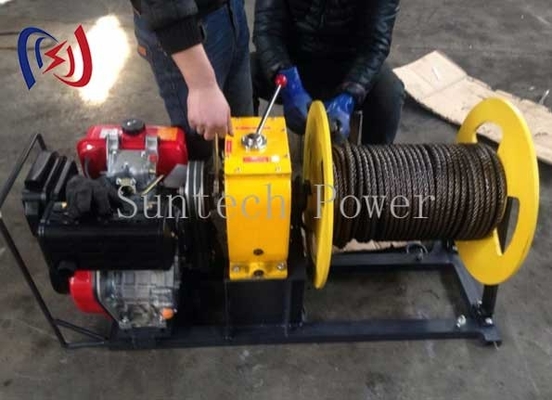

Cable Pulling Winch Transmission Line Stringing Tools
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
Explain:Gasoline power can be replaced with corresponding diesel power according to requirements.
| Item No. | Model |
Rotation direction |
Gear |
rotational speed (RPM) |
Traction speed (M/MIN) |
Tractive force(T) |
Power(KW) | Outline(mm) | Weight(KG) |
| 08155 |
JJQ-30 6HP Gasoline engine |
corotation |
I slow |
9.0 | 4.0 | 3.0 | 4.04 | 1000*500*560 | 100 |
|
Ⅱ fast |
16.0 | 6.6 | 1.8 | ||||||
| reversal | reverse gear | 7.5 | 3.3 | No lifting | |||||
| 08156 |
JJQ-50 9HP Gasoline engine |
corotation | I slow | 6.5 | 4.0 | 5.0 | 6.61 | 1400*510*650 | 150 |
| Ⅱ fast | 16.0 | 9.0 | 2.2 | ||||||
| reversal | reverse gear | 7.0 | 4.0 | No lifting |
