15HP 2000RPM Dual Double Drum Winch 13KM/H Transmission Line Stringing Tools
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | 12-A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Walking Tractor Winch | Item No.: | 09171/09172 |
|---|---|---|---|
| Ground Clearance: | 150mm | Wheel-base: | 1040mm |
| Power: | 15HP | Speed: | 2000RPM |
| Travel Speed: | 3-13KM/H | Weight: | 550/600KG |
| Warranty: | 1 Year | ||
| Highlight: | 15HP Double Drum Winch,2000RPM Double Drum Winch,dual drum winch 13KM/H |
||
Product Description

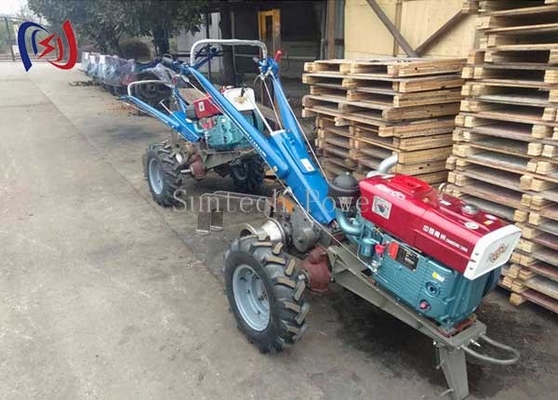

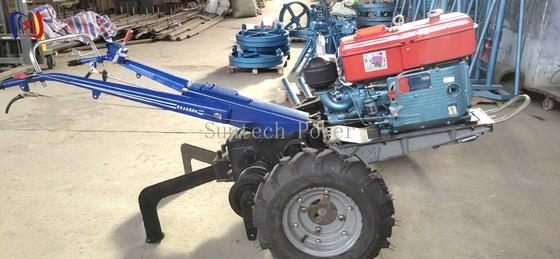

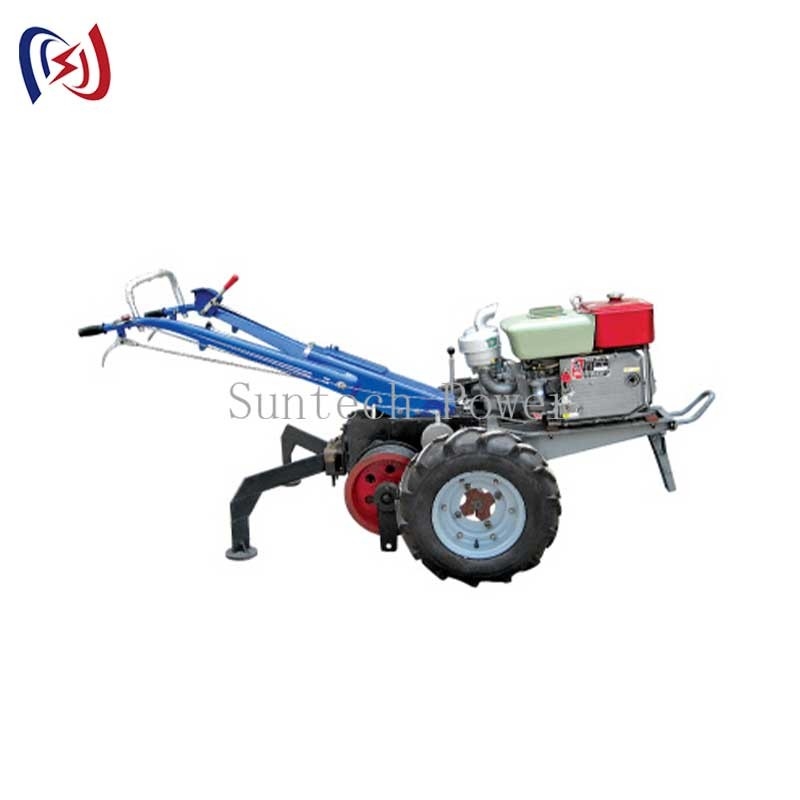

Double Drum Winch Transmission Line Stringing Tools
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
Feature:Restructured from the model 12 hand tractor,simple structure,easy operation widely used for pylon-conductor setting in power line construction.
| Item No. | Model | Ground Clearance(MM) | wheel-base(MM) |
Power (HP) |
speed (RPM) |
Travel speed(KM/H) | Outline size(MM) | Weight(KG) |
| 09171 | 12-A | 150 | 1040 | 15 | 2000 | 3-13 | 2670*1040*1300 | 550 |
| 09172 | 12-B | 150 | 1040 | 15 | 2000 | 3-13 | 2670*1040*1300 | 600 |
| Gear | Ⅰ | Ⅱ | Ⅲ | 4 | reversal Ⅰ | reversal Ⅱ |
| Traction force(T) | 60 | 37 | 20 | 12 | / | / |
|
Traction speed (M/MIN) |
11.7 | 18.9 | 34.4 | 55.6 | 6.2 | 21.3 |
