Core Grinding Reel Cable Take Up Machine Transmission Line Stringing Tools
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | JJQ-3/S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Core Grinding Take-up Machine | Item No.: | 08192-08193 |
|---|---|---|---|
| Rotational Speed: | 8-19RPM | Traction Speed: | 8.5-23M/min |
| Tractive Force: | 0.75-3T | Power: | 2.94-6.61KW |
| Weight: | 115-188KG | Warranty: | 1 Year |
| Highlight: | Core Grinding cable take up machine,2.94KW cable take up machine,6.61KW reel take up machines |
||
Product Description

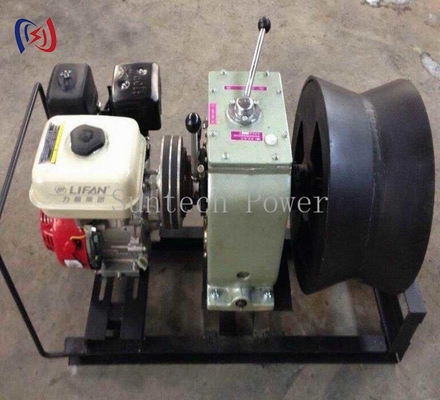

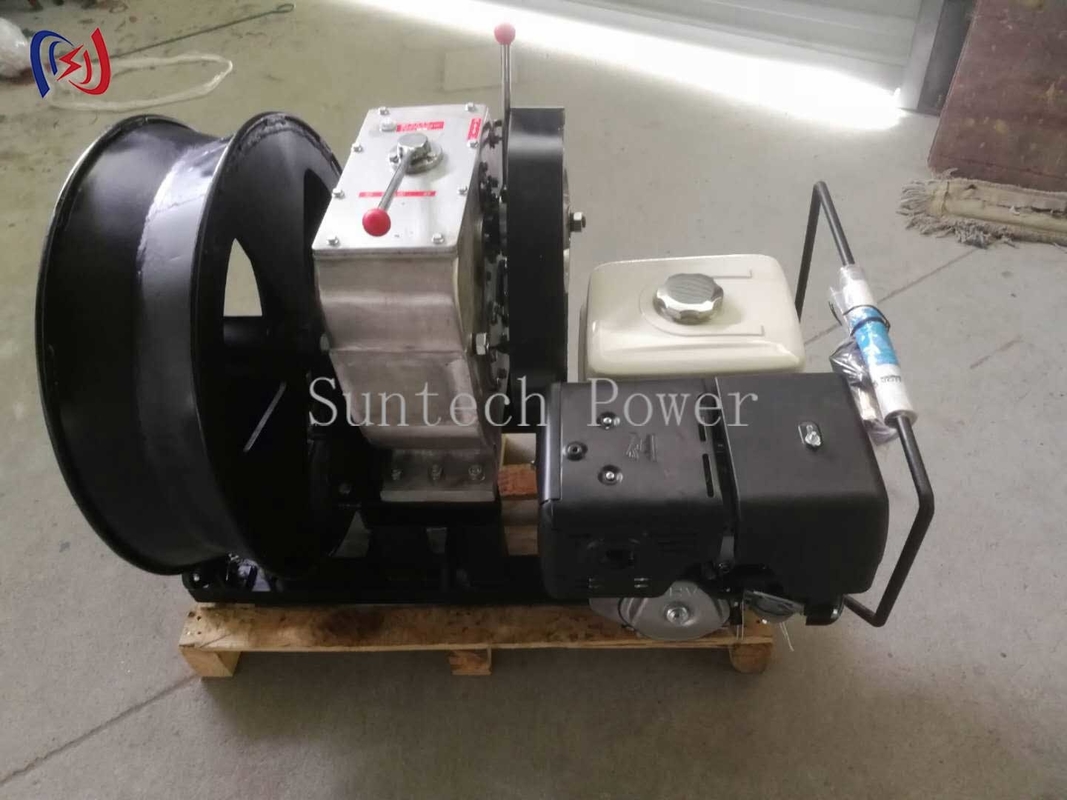

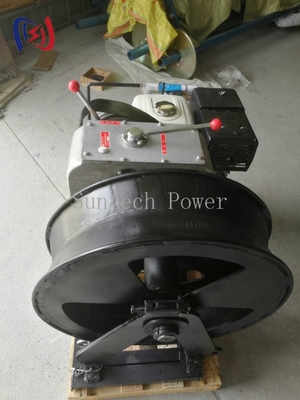

Core Grinding Take-Up Machine Transmission Line Stringing Tools
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
Purpose and features:Retractable and retractable wire mill (belt drive)
Used to reclaim old conductors or overhead ground wires from a line.
| Item No. | Model | Rotation direction | Gear |
rotational speed (RPM) |
Traction speed (M/MIN) |
Tractive force(T) | Power(KW) | Outline(mm) | Weight(KG) |
| 08192 |
JJQ-3/S 9HP Gasoline engine
|
corotation | I slow | 9.0 | 11.0 | 1.25 | 4.04 | 900*460*660 | 115 |
| Ⅱ fast | 18.0 | 22.0 | 0.75 | ||||||
| reversal | reverse | 8.0 | 10.0 | No lifting | |||||
| 08192A |
JJC-3/S 4HP Diesel engine |
corotation | I slow | 10.5 | 13.0 | 1.25 | 2.94 | 940*500*660 | 132 |
| Ⅱ fast | 19.0 | 23.0 | 0.75 | ||||||
| reversal | reverse | 9.0 | 11.0 | No lifting | |||||
| 08194 |
JJQ-5/S 9HP Gasoline engine
|
corotation | I slow | 6.5 | 8.5 | 3.0 | 6.61 | 1000*720*600 | 155 |
| Ⅱ fast | 16.0 | 20.0 | 1.4 | ||||||
| reversal | reverse | 7.0 | 9.0 | No lifting | |||||
| 08193 |
JJQ-5/S 6.6HP Diesel engine |
corotation | I slow | 8.0 | 10.0 | 3.0 | 4.41 | 1000*850*520 | 188 |
| Ⅱ fast | 19.0 | 23.0 | 1.4 | ||||||
| reversal | reverse | 10.0 | 12.0 | No lifting |
