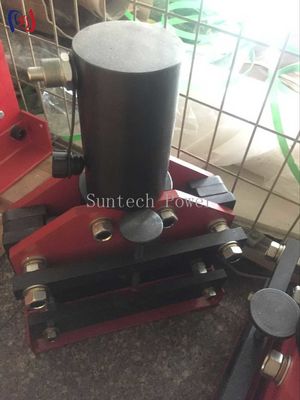

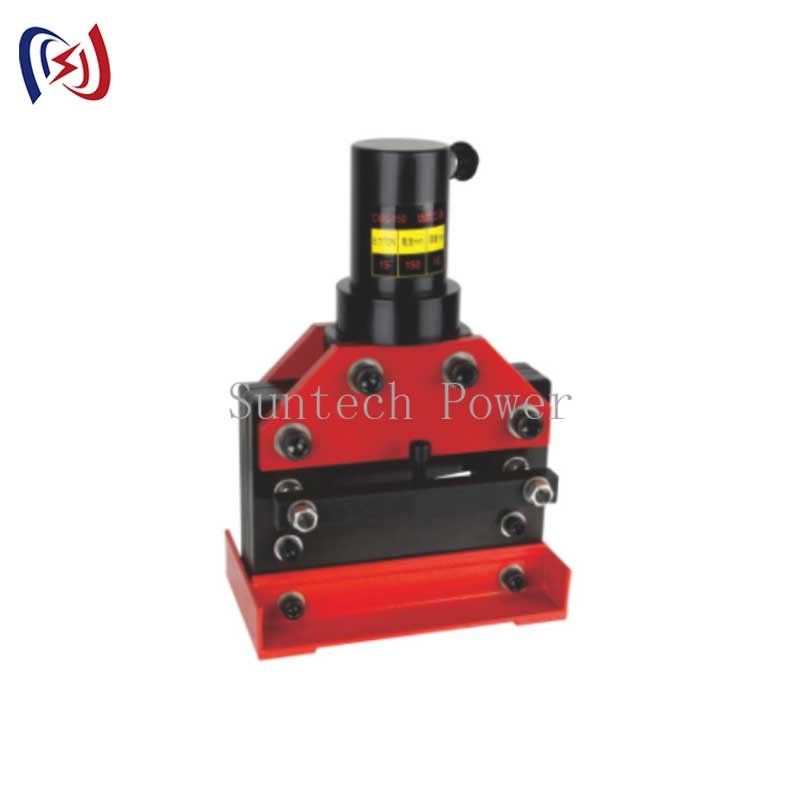

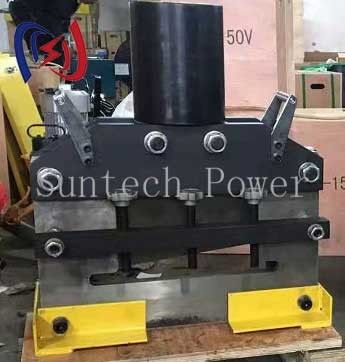

Heavy-Duty Hydraulic Bus-bar Cutter for Copper & Aluminum – Effortless 0-12mm Thickness Cutting
Product Details:
| Place of Origin: | Ningbo |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | CWC-150 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case |
| Delivery Time: | 3-7days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1500 PCS/Month |
|
Detail Information |
|||
| Name: | Hydraulic Copper Aluminum Bus-Bar Cutter | Item No.: | 06242-1 |
|---|---|---|---|
| Model: | CWC-150/CWC-200 | Max Thickness Of Sheet: | CU/AL Plate 10-12mm |
| Width Of Sheet: | CU/AL Plate 150-200mm | Height: | 440-460mm |
| Weight: | 33-40KG | Warranty: | 1 Year |
Product Description
Heavy-Duty Hydraulic Bus-bar Cutter for Copper & Aluminum – Effortless 0-12mm Thickness Cutting
The Hydraulic Copper Aluminum Bus-bar Cutter is a professional-grade cutting tool engineered for precision and efficiency in electrical installations, substation maintenance, and renewable energy projects. Designed to handle both copper and aluminum busbars with thicknesses ranging from 0.5mm to 12mm, this hydraulic cutter delivers clean, burr-free cuts without material deformation.
Key Features:
✔ 2000kg Hydraulic Pressure System – Ensures effortless cutting with minimal manual force.
✔ Dual-Material Compatibility – Tungsten carbide-coated blades (HRC 62+) cut copper and aluminum without cross-contamination.
✔ Zero Energy Consumption – Fully hydraulic operation, no electricity or compressed air required.
✔ Precision Cutting – Built-in angle guide for 45° and 90° cuts (±0.1mm tolerance).
✔ Safety Lock Mechanism – 3-stage protection against accidental activation.
✔ Portable & Lightweight – Weighs only 4.3kg, ideal for fieldwork.
Performance Benefits:
- 75% Faster than manual saws (cuts 10mm copper in 3 seconds).
- 15,000+ cuts per blade set – Saves $1,200/year on replacements.
- Zero material waste – Optimized blade design minimizes scrap.
Technical Specifications:
- Model: CWC-150
- Max Cutting Width: 200mm
- Operating Temperature: -20°C to 60°C
- Compliance: ISO 9001, IEC 60900
- Warranty: 5 years
Ideal Applications:
- Electrical substations
- Solar panel busbar fabrication
- EV battery assembly
- Industrial power distribution
Manual Bar Bender Specification
| Item number | 06242 | 06242A |
| Model | CB-150D | CB-200A |
| Bending force | 170KN | 170KN |
| Max thickness of sheet | CU/AL plate 10mm | CU/AL plate 12mm |
| Width of sheet | CU/AL plate 150mm | CU/AL plate 200mm |
| Height | approx.250mm | approx.340mm |
| Weight |
approx.N.W17KG G.W20.5KG |
approx.N.W27KG G.W30.4KG |
| Package | wooden case | wooden case |
