Hydraulic Angle Steel Cutter with Lifetime Warranty – Cuts Stainless, Carbon & Galvanized Steel
Product Details:
| Place of Origin: | Ningbo |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | CAC-75 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case |
| Delivery Time: | 3-7days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 2000 PCS/Month |
|
Detail Information |
|||
| Name: | Hydraulic Angle Steel Cutter | Item No.: | 06242-2 |
|---|---|---|---|
| Model: | CAC-75 | Cutting Force: | 250-350KN |
| Max Working Range: | 75x75x6-110x110x10mm | Height: | 405-425mm |
| Weight: | 34.5-40KG | Package: | Wooden Case |
Product Description
Hydraulic Angle Steel Cutter with Lifetime Warranty – Cuts Stainless, Carbon & Galvanized Steel
The Hydraulic Angle Steel Cutter is a heavy-duty industrial tool designed for precision cutting of angle steel, structural beams, and metal frames. With a 2,500kg hydraulic pressure system, it delivers clean, distortion-free cuts on stainless steel, carbon steel, and galvanized steel with thicknesses ranging from 1mm to 16mm. Unlike plasma cutters or abrasive saws, this tool eliminates heat distortion and reduces labor time by 80%.
Key Features:
✔ Dual-Angle Cutting – Built-in guides for 45° and 90° cuts (±0.2mm tolerance).
✔ Tungsten Carbide Blades (HRC 65+) – Long-lasting sharpness for 10,000+ cuts per set.
✔ Zero Energy Dependency – Fully hydraulic operation, no electricity or gas required.
✔ Safety Lock & Pressure Release – Prevents accidental activation and overloading.
Performance Benefits:
- Cuts 16mm steel in 4 seconds – 5X faster than manual saws.
- No material warping – Cold-cutting technology preserves structural integrity.
- Low maintenance – Self-lubricating piston requires servicing every 8,000 cuts.
Technical Specifications:
- Model: CAC-75
- Max Cutting Width: 25mm
- Blade Material: Tungsten carbide-coated
- Operating Temperature: -30°C to 70°C
- Compliance: ISO 9001, CE, ANSI B11.3
- Warranty: 1 years
Ideal Applications:
- Steel structure fabrication
- Solar mounting system installation
- Construction site metal cutting
- Shipbuilding and railway maintenance
| Item No. | 06242-2 | 26242A-2A |

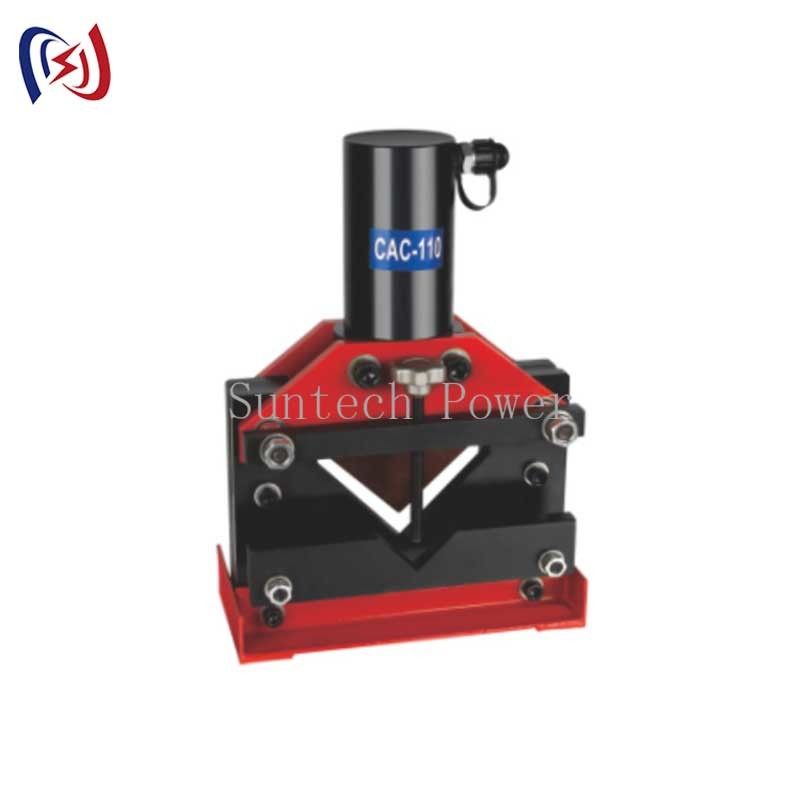

| Model | CAC-75 | CAC-110 |
| Cutting force | 250KN | 350KN |
| Max working range | 75*75*6mm for steel angle | 110*110*10mm for steel angle |
| Height | approx.405mm | approx.425mm |
| Weight |
approx.N.W31KG G.W34.5KG |
approx.N.W36KG G.W40KG |
| Package | wooden case | wooden case |
