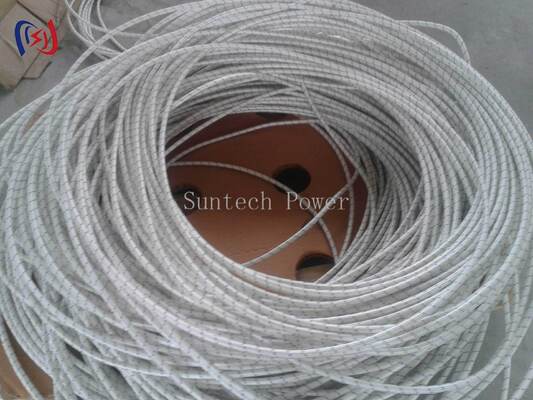

Non Conductive Dynema Rope with Exceptional Strength to Weight Ratio and Superior Abrasion Resistance for Electrical Maintenance
Product Details:
| Place of Origin: | Ningbo |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | Dynema |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Meter |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case |
| Delivery Time: | 3-7days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 10000 M/Month |
|
Detail Information |
|||
| Name: | Dynema Rope | Diameter: | 4-18mm |
|---|---|---|---|
| Lineay Density: | 9.31-186G/M | Sheath Diameter: | 5.5-21mm |
| Linear Density: | 13-247.3G/M | Break Force: | 16.6-296KN |
| Highlight: | Non Conductive Dynema Rope,Exceptional Strength to Weight Ratio Pilot Wire,Superior Abrasion Resistance Synthetic Fiber Rope |
||
Product Description
Durable Dynema Rope for Professional Use in Electrical Maintenance and Emergency Repair Operations
Dynema rope represents a significant advancement in synthetic fiber technology, offering exceptional properties for demanding applications in the power construction and utility industry.
Technical Specifications
| Diameter (MM) | Linear Density (G/M) | Sheath Diameter (MM) | Linear Density (G/M) | Break Force (KN) |
|---|---|---|---|---|
| 4 | 9.31 | 5.5 | 13 | 16.6 |
| 6 | 20 | 8 | 28.2 | 31.9 |
| 8 | 35 | 10 | 48.4 | 58.8 |
| 10 | 56 | 12 | 77 | 92.5 |
| 12 | 84 | 14 | 113.4 | 137 |
| 14 | 106 | 16 | 150 | 180 |
| 16 | 132 | 18 | 177 | 211 |
| 18 | 186 | 21 | 247.3 | 296 |
Key Features and Benefits
Exceptional Strength to Weight Ratio
Significantly stronger than steel wire rope of comparable diameter yet lightweight and easy to handle. Reduces worker fatigue and simplifies transport to remote job sites.
Non-Conductive for Electrical Safety
Inherently non-conductive property makes it the safest choice for operations near energized power lines, substations, or electrical equipment.
Superior Abrasion and UV Resistance
Outstanding resistance to abrasion and ultraviolet radiation ensures longer service life and lower replacement costs in tough outdoor conditions.
Low Stretch for Precision Work
Minimal elongation under load is vital for precise tensioning and positioning in conductor stringing, guying systems, and overhead line work.
Excellent Chemical and Moisture Resistance
Highly resistant to chemicals, oils, fuels, and water. Will not rot, mildew, or lose strength when wet, ensuring consistent performance in all weather conditions.
Smooth Handling and User-Friendly
Flexible with a smooth surface that makes it easy to splice, knot, and handle while being gentle on workers' hands.
Floats on Water
Less dense than water, making it invaluable for marine operations and tasks near bodies of water where recovery is simplified.
Industry Applications
Dynema rope is suitable for various power industry tasks including pull lines for stringing conductors, non-conductive lifting slings, tensioning and guying during tower assembly, winch lines, and general rigging operations.
Long-Term Value Proposition
While the initial investment may be higher than traditional ropes, Dynema rope offers superior long-term value through extended service life, reduced maintenance, and elimination of corrosion-related costs. The enhanced safety features provide additional value by reducing accident risks and improving operational efficiency.
By choosing Dynema rope, you select a product that enhances safety, boosts productivity, and delivers unmatched performance for the most challenging tasks in power construction and maintenance.
