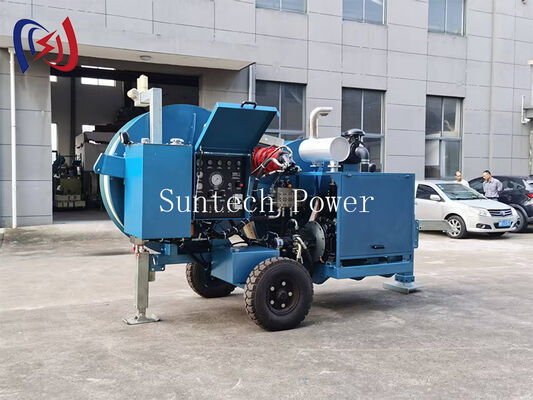

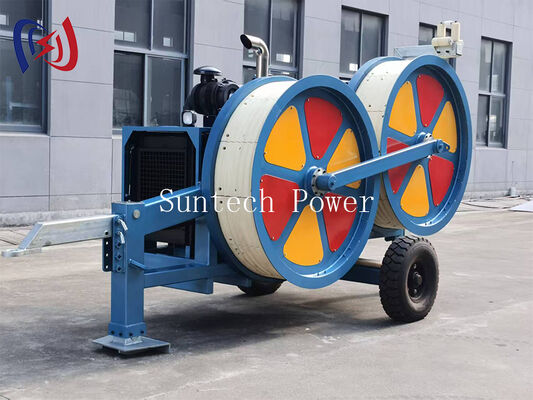

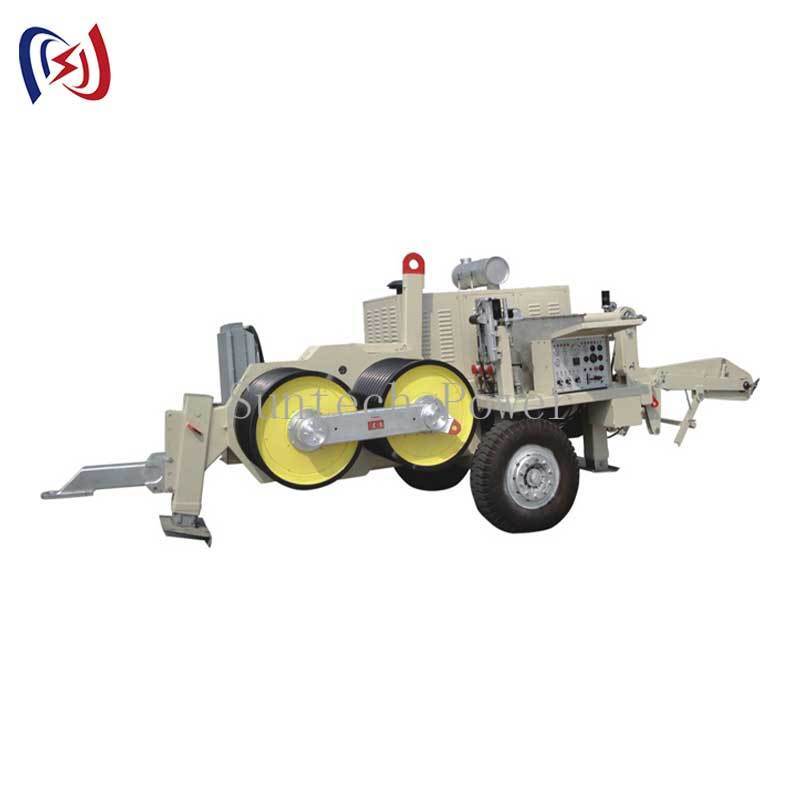

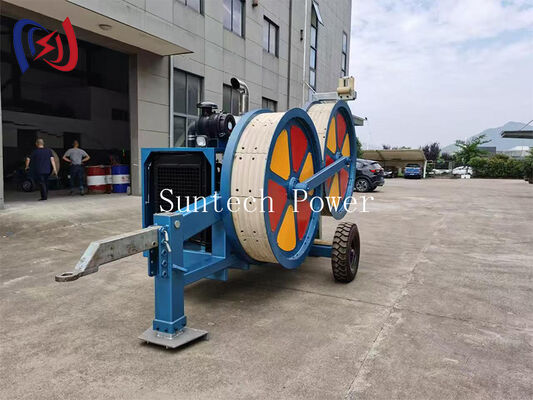

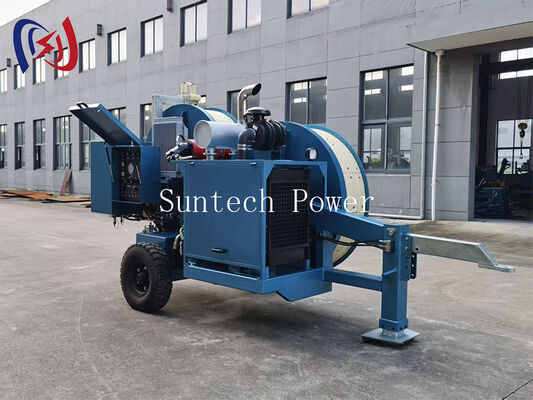

60KN Hydraulic Traction Equipment and 50KN Hydraulic Puller with 5 km/h Max Pulling Speed for Overhead Line Stringing
Product Details:
| Place of Origin: | Ningbo, Zhejiang, China |
| Brand Name: | Suntech |
| Certification: | ISO 9001:2015 |
| Model Number: | QY-60Y |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export-grade wooden case with steel strapping and moisture-proof lining |
| Delivery Time: | 7-15 working days for production |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000 Sets per Month |
|
Detail Information |
|||
| Product Name: | Hydraulic Traction Equipment | Item No.: | 07031 |
|---|---|---|---|
| Model: | QY-60Y | Maximum Pull Force: | 60 KN |
| Continuous Pull Force: | 50 KN | Max Pulling Speed: | 5 Km/h |
| Groove Diameter: | 460 Mm | Number Of Grooves: | 7 |
| Steel Rope Diameter: | 18 Mm | Connector Diameter: | 60 Mm |
| Engine Power: | 77 KW / 2800 Rpm | Dimensions: | 3.8 X 2.1 X 2.3 M |
| Weight: | 3000 KG | Warranty: | 1 Year |
| Highlight: | 60KN Hydraulic Traction Equipment,50KN Hydraulic Puller,5 km/h Overhead Line Stringing Puller |
||
Product Description
Hydraulic Traction Equipment QY-60Y — 60KN Pulling for Overhead Line Stringing
The Suntech QY-60Y hydraulic traction machine is a transmission-line stringing puller built to haul conductor and wire rope under steady, controlled tension. It delivers a 60KN maximum pull force and 50KN continuous force, with an automatic wire rope winding device that keeps the drum dressed and the pull running without manual re-spooling.
Built on Transmission Line Experience
Suntech Power Tools is based in southeast China, in the country’s earliest power-tool manufacturing cluster. For decades our team has worked alongside transmission line crews, producing cable pulling tools, hydraulic tension and puller sets that support overhead line projects. That field experience shaped the QY range: proven hydraulics, serviceable components and a frame that survives repeated site moves.
How the QY-60Y Performs
A 77KW diesel engine drives a closed hydraulic circuit that applies smooth, adjustable tension to the conductor or wire rope. The grooved drum (Φ460mm, 7 grooves) grips steel rope up to Φ18mm and lets connectors up to Φ60mm pass through, while the automatic winding device lays rope evenly to prevent overlap and chafing. Pulling speed reaches 5km/h through the full force range.
Technical Specifications
| Item No. | Model | Max Pull Force (KN) | Continuous Pull Force (KN) | Max Speed (km/h) | Groove Diameter (mm) | Grooves | Steel Rope Dia. (mm) | Connector Dia. (mm) | Engine Power (KW/RPM) | Dimensions (m) | Weight (KG) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 07001 | QY-30Y | 30 | 25 | 5 | Φ300 | 7 | Φ13 | Φ40 | 31/2200 | 3.2×1.6×2 | 1500 |
| 07011 | QY-40Y | 40 | 35 | 5 | Φ400 | 7 | Φ16 | Φ50 | 60/2000 | 3.5×2×2.3 | 2500 |
| 07031 | QY-60Y | 60 | 50 | 5 | Φ460 | 7 | Φ18 | Φ60 | 77/2800 | 3.8×2.1×2.3 | 3000 |
| 07041 | QY-90Y | 90 | 80 | 5 | Φ520 | 7 | Φ20 | Φ60 | 123/2500 | 3.5×2.1×2.5 | 4300 |
| 07051 | QY-180Y | 180 | 150 | 5 | Φ630 | 9 | Φ24 | Φ63 | 209/2100 | 5.5×2.2×2.6 | 7500 |
Matching wire rope tray models GSP950 / GSP1400 / GSP1600 are available across the range.
Testing and Quality Control
Every unit is assembled, pressure-tested and run under load before packing. We verify hydraulic pressure, drum winding and brake holding on each machine, and production follows ISO 9001 quality procedures. Machines are built to relevant machinery and electrical safety requirements and can be supplied to OEM specification.
Documentation, Warranty and Support
Units ship with an illustrated operation and maintenance manual, a hydraulic schematic and a rope-routing chart. A 12-month warranty covers manufacturing defects, and our technical team advises on pulling capacity, rope selection and tension settings in English, Spanish and Chinese. Products are exported to more than 50 countries.
Where It Works Best
- Overhead transmission and distribution line stringing
- Conductor and wire rope pulling on towers and spans
- Substation and utility conductor installation
- Tension stringing with matching wire rope trays
- Heavy pulling duties requiring controlled, steady force
Choosing the Right Model
The QY-30Y and QY-40Y cover lighter distribution work, the QY-60Y balances 60KN of pull with a compact 3.8m frame, and the QY-90Y and QY-180Y handle high-tension transmission pulls. Tell us your conductor type, span length and required pulling force, and we will recommend the right model and tray.
Frequently Asked Questions
What force can it hold continuously? The QY-60Y delivers 50KN continuous and 60KN maximum pull force.
How does the winding device help? It lays wire rope evenly on the grooved drum automatically, preventing overlap and chafing during long pulls.
Can it be customised? Yes. We accept OEM and produce to ISO 9001 for projects worldwide.
Request a Quotation
Send us your conductor type, span length and required pulling force. We will reply with a recommended model, tray and shipping options. Contact our team for a factory-direct quotation today.
