Hydraulic Tension Equipment SA-YZ2x40B 80KN Two-Conductor Hydraulic Tensioner for Overhead Line Stringing Equipment
Product Details:
| Place of Origin: | Ningbo, Zhejiang, China |
| Brand Name: | Suntech |
| Certification: | ISO 9001:2015 |
| Model Number: | SA-YZ2x40B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export-grade wooden case with steel strapping and moisture-proof lining |
| Delivery Time: | 7-15 working days for production |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000 Sets per Month |
|
Detail Information |
|||
| Product Name: | Hydraulic Tension Equipment | Item No.: | 07192 |
|---|---|---|---|
| Model: | SA-YZ2x40B | Maximum Tension: | 2x40 / 1x80 KN |
| Continuous Tension: | 2x35 / 1x70 KN | Max Speed: | 5 Km/h |
| Max Speed Back: | 2x1.5 Km/h | Groove Diameter: | 1500 Mm |
| Number Of Grooves: | 2x5 | Conductor Diameter: | 40 Mm |
| Engine Power: | 51 KW / 2500 Rpm | Dimensions: | 4.5 X 2.2 X 2.8 M |
| Weight: | 4850 KG | Warranty: | 1 Year |
| Highlight: | 80KN Hydraulic Tension Equipment,Two-Conductor Hydraulic Tensioner,2x40KN Overhead Line Stringing Equipment |
||
Product Description

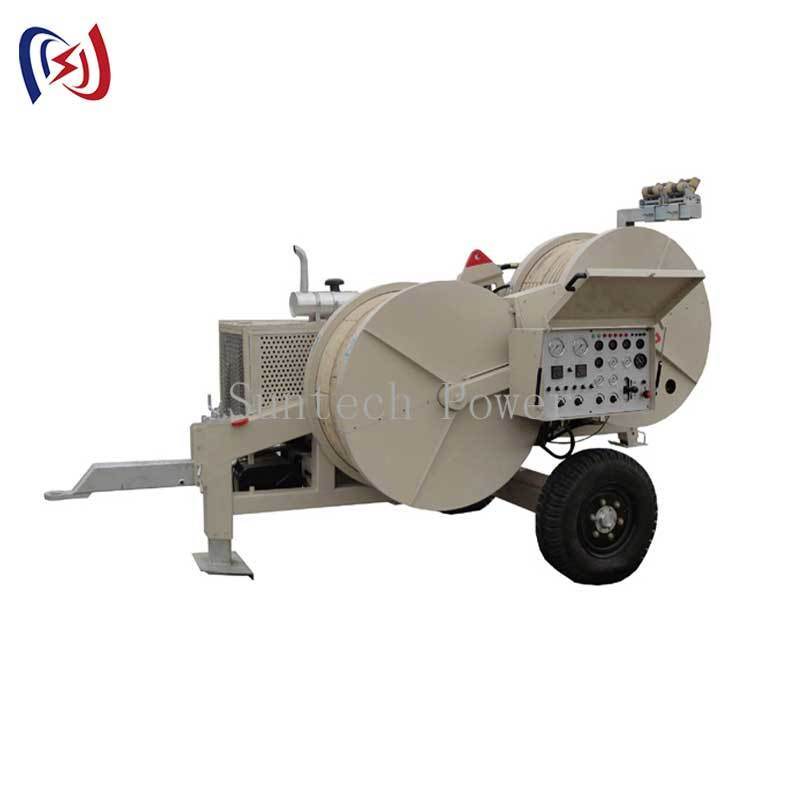

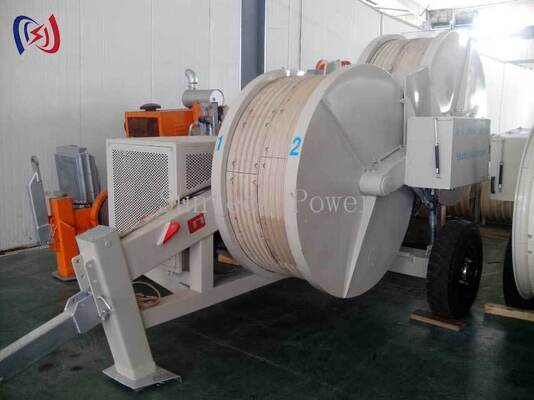

Hydraulic Tension Equipment SA-YZ2x40B — 80KN Two-Conductor Tensioning for Overhead Line Stringing
The Suntech SA-YZ2x40B is a hydraulic tension machine for overhead line stringing, holding conductors under infinitely variable, constant tension during the pull. It delivers 2×40KN on twin conductors or 1×80KN on a single conductor, making it a flexible unit for distribution and transmission work.
Transmission Line Experience Behind It
Suntech Power Tools is based in southeast China, the country’s earliest power-tool manufacturing region. Our team has supplied cable pulling tools, hydraulic tensioners and pullers to transmission projects for decades, producing to ISO 9001:2008 and exporting to more than 50 countries. That field record shaped the SA-YZ range: reliable hydraulics, serviceable bull wheels and frames built for repeated site moves.
How the SA-YZ2x40B Works
A 51KW diesel engine powers a closed hydraulic circuit that applies smooth, adjustable tension to the conductor. Key design points include:
- Bull wheel with wear-proof MC nylon lining segments — protects conductor strands and reduces wear
- Infinitely variable tension control for constant-tension conductor stringing
- Spring-applied, hydraulically released brake that engages automatically if pressure is lost
- Two hydraulic power output interfaces to drive a hydraulic conductor reel stand
Technical Specifications
Single-conductor tensioners:
| Item No. | Model | Max Tension (KN) | Continuous Tension (KN) | Groove Dia. (mm) | Conductor Dia. (mm) | Engine (KW/RPM) | Dimensions (m) | Weight (KG) |
|---|---|---|---|---|---|---|---|---|
| 07212 | SA-YZM7.5 | 7.5 | 7.5 | Φ1100 | / | / | 2.3×1.2×1.6 | 450 |
| 07155 | SA-YZ30A | 30 | 25 | Φ1200 | Φ32 | 11/2200 | 3.6×1.8×2.4 | 1700 |
| 07171 | SA-YZ40A | 40 | 35 | Φ1200 | Φ32 | 51/2500 | 3.4×1.8×2.4 | 2800 |
Two-conductor tensioners:
| Item No. | Model | Max Tension (KN) | Continuous Tension (KN) | Groove Dia. (mm) | Grooves | Conductor Dia. (mm) | Engine (KW/RPM) | Dimensions (m) | Weight (KG) |
|---|---|---|---|---|---|---|---|---|---|

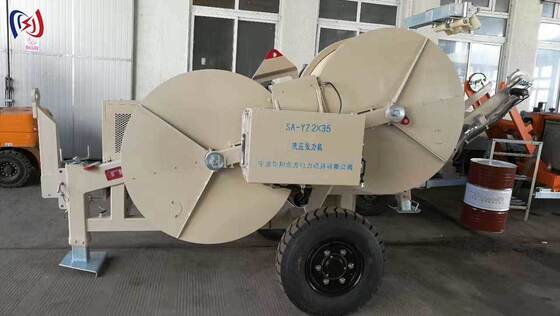

| 07181 | SA-YZ2×35 | 2×35 / 1×70 | 2×30 / 1×60 | Φ1200 | 2×5 | Φ32 | 51/2500 | 4.4×2.1×2.6 | 4000 |
| 07192 | SA-YZ2×40B | 2×40 / 1×80 | 2×35 / 1×70 | Φ1500 | 2×5 | Φ40 | 51/2500 | 4.5×2.2×2.8 | 4850 |
| 07197 | SA-YZ2×55 | 2×55 / 1×110 | 2×50 / 1×100 | Φ1600 | 2×5 | Φ42.5 | 54/2500 | 5.0×2.3×2.7 | 7500 |
Testing and Quality Control
Each unit is assembled, pressure-tested and run under load before packing. We verify hydraulic pressure, bull-wheel alignment, brake response and tension-control accuracy on every machine, and production follows ISO 9001 quality procedures. Units can be provided to OEM specification.
Documentation, Warranty and Support
Machines ship with an illustrated operation and maintenance manual, a hydraulic schematic and a conductor-routing chart. A 12-month warranty covers manufacturing defects, and our technical team advises on conductor type, tension settings and reel-stand hook-up in English, Spanish and Chinese.
Where It Works Best
- Overhead transmission and distribution line stringing
- Two-conductor simultaneous tension stringing
- Constant-tension conductor pulls over long spans
- Substation and utility conductor installation
- Tension stringing paired with hydraulic reel stands
Choosing the Right Model
The SA-YZM7.5 and SA-YZ30A cover lighter single-conductor work, the SA-YZ40A handles 40KN single pulls, and the SA-YZ2×35 / 2×40B / 2×55 series tension two conductors at once. Tell us your conductor type, span length and bundle configuration, and we will recommend the right model and reel stand.
Frequently Asked Questions
Can it tension two conductors at once? Yes. The SA-YZ2×40B holds 2×40KN continuously or 1×80KN on a single conductor.
How is constant tension maintained? Infinitely variable hydraulic control adjusts pull to match the conductor’s set tension throughout the run.
What happens if hydraulic pressure drops? A spring-applied, hydraulically released brake engages automatically to hold the load.
Request a Quotation
Send us your conductor type, span length and bundle configuration. We will reply with a recommended model, reel stand and shipping options. Contact our team for a factory-direct quotation today.
