12 - 150mm Pilot Wire Cable Mesh Sock Joints Overhead Transmission Line Tools
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SWL-16 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Cable Mesh Sock Joints | Item No.: | 21361-21370 |
|---|---|---|---|
| Applicable Cable Diameter: | 12-150mm | Rated Load: | 10-30KN |
| Weight: | 0.8-2.6KG | Warranty: | 1 Year |
| Uses: | Apply To Installing Electrcity Cable Communication Cable And Normal Cable. | ||
| Highlight: | 12mm Pilot Wire,150mm Pilot Wire,Overhead Transmission Line Tools |
||
Product Description

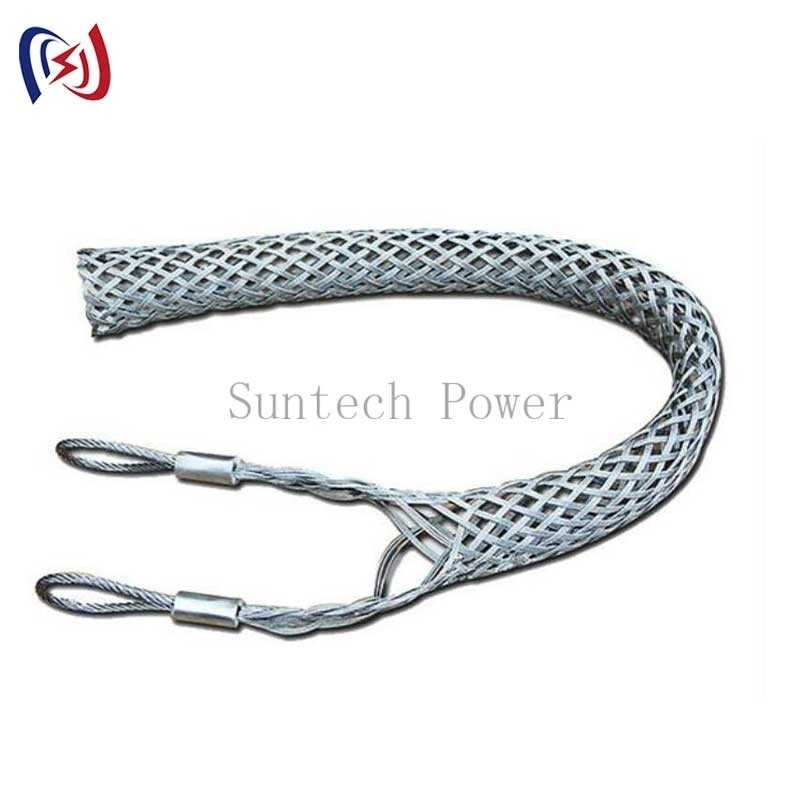

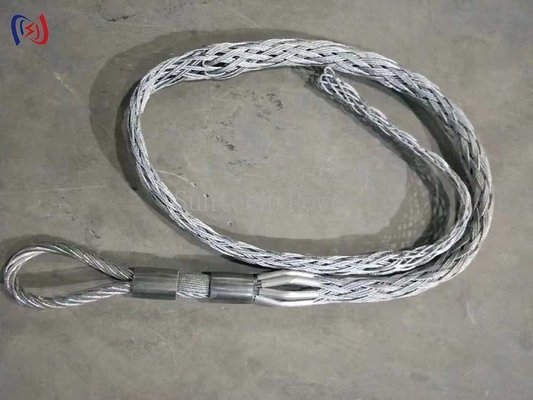

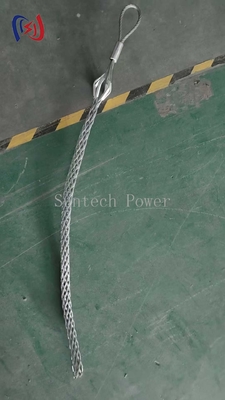

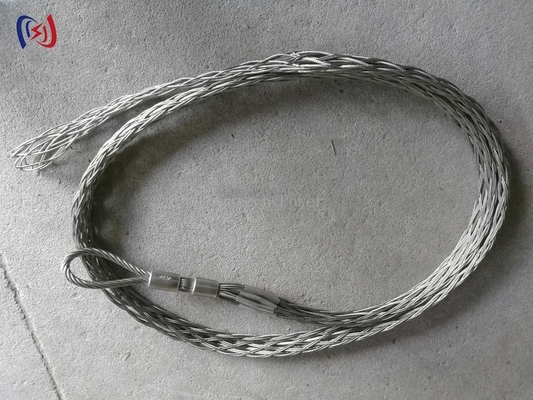

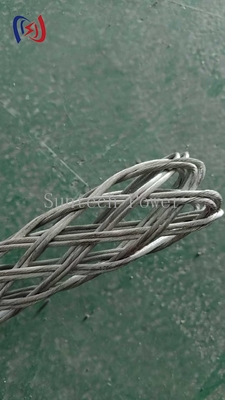

Cable Mesh Sock Joints Professional Overhead Transmission Line Tools for Safe and Easy Cable Installation
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
Feature
1. As well as advantages of light weight, large tensile load, not damage line, convenient to use and so on.It is also soft and easy to strench.
2. The most ideal tool for electric power construction. Applicatoin Apply to installing electrcity cable communication cable and normal cable.
Use Method First press the opening of the net sleeve with the palm of your hand to open it, then start to wear the cable inward. The deeper the cable is worn, the greater the pulling force. The mesh body of the net sleeve is in the form of a grid, and the tension is tightened during construction. After the construction is completed, you only need to apply force in the opposite direction to remove the net sleeve. The net sleeve can be pulled by hand or lifting tool to achieve the function of wiring and protecting the cable.
Technical Data
| Item number | Model |
Applicable Cable Diameter (mm) |
Rated Load (KN) |
Weight (kg) |
| 21361 | SWL-16 | Φ12-16 | 10 | 0.8 |
| 21362 | SWL-20 | Φ16-20 | 10 | 0.8 |
| 21363 | SWL-25 | Φ20-25 | 15 | 1.0 |
| 21364 | SWL-37 | Φ25-37 | 15 | 1.0 |
| 21365 | SWL-50 | Φ37-50 | 15 | 1.0 |
| 21366` | SWL-60 | Φ50-60 | 25 | 2.4 |
| 21367 | SWL-80 | Φ60-80 | 25 | 2.4 |
| 21368 | SWL-100 | Φ80-100 | 25 | 2.4 |
| 21369 | SWL-120 | Φ100-120 | 30 | 2.6 |
| 21370 | SWL-150 | Φ120-150 | 30 | 2.6 |
