11 - 38M/Min Tractor Drawn Winch Transmission Line Walking Overhead Line Stringing Equipment
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SX4-V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Tractor-drawn Winch | Item No.: | 08126 |
|---|---|---|---|
| Traction Force: | 20-40KN | Traction Speed: | 11-38M/Min |
| Bottom Of Groove Diameter: | 300mm | Number Of Groove: | 6 |
| Weight: | 1740KG | Outline Size: | 2900x14000x1440mm |
| Warranty: | 1 Year | ||
| Highlight: | 11M/Min Overhead Line Stringing Equipment,38M/Min Overhead Line Stringing Equipment,11M/Min Tractor Drawn Winch |
||
Product Description

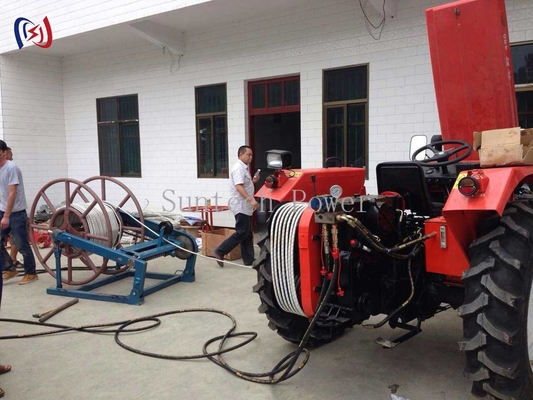

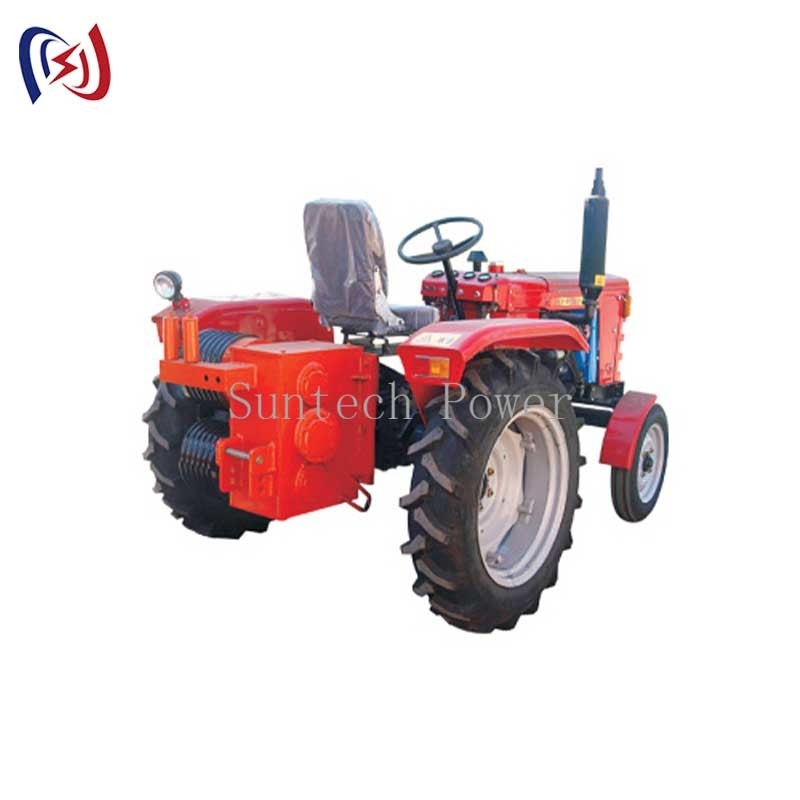

Tractor-drawn Winch Transmission Line Walking Tractor Drawn Winch Machine
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
Application
Fast Speed Double Drum Winch Tractor For Pulling and Lifting During Tower Erection is applicable to pull no-twist wire rope.Suitable for the construction of the tower line,traction line,tight line operation,laying cable.
Features
Four gear,forward gear and reverse gear

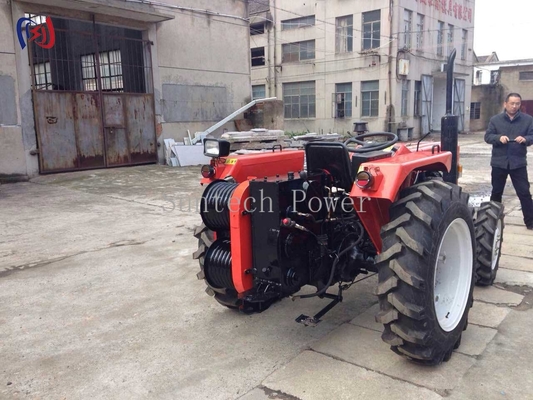

Double drum,seven groove,protect the wire rope
speedy and convenient
The grinding of walking tractor is reformed from 12 type walking tractor.

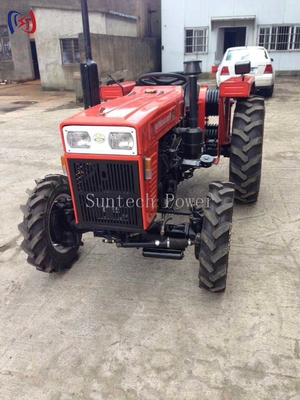

It is made of four-wheel drive 304 type tractors. Can use a two-wheel drive 300 tractor(Item No. 08127)
Specifications:
|
Item number |
08126 |
Power |
22KW |
Model | SX4-V1 | |
| Gear | Ⅰ | Ⅱ |
Ⅲ |
reversalⅠ | ||
| Traction force(KN) | 40 | 30 |
20 |
- | ||
| Traction speed(M/MIN) | 12 | 21 |
38 |
11 | ||
| bottom of groove diameter | Φ300mm | |||||
| Number of groove | 6 | |||||
| Weight(KG) | 1740kg | |||||
| outline size | 2900x14000x1440mm | |||||
