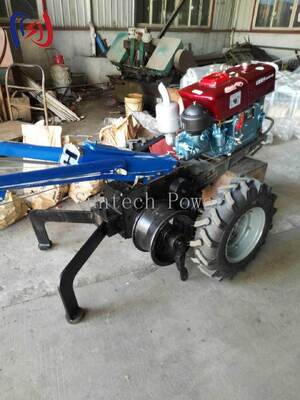

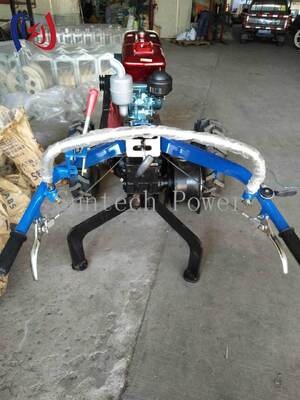

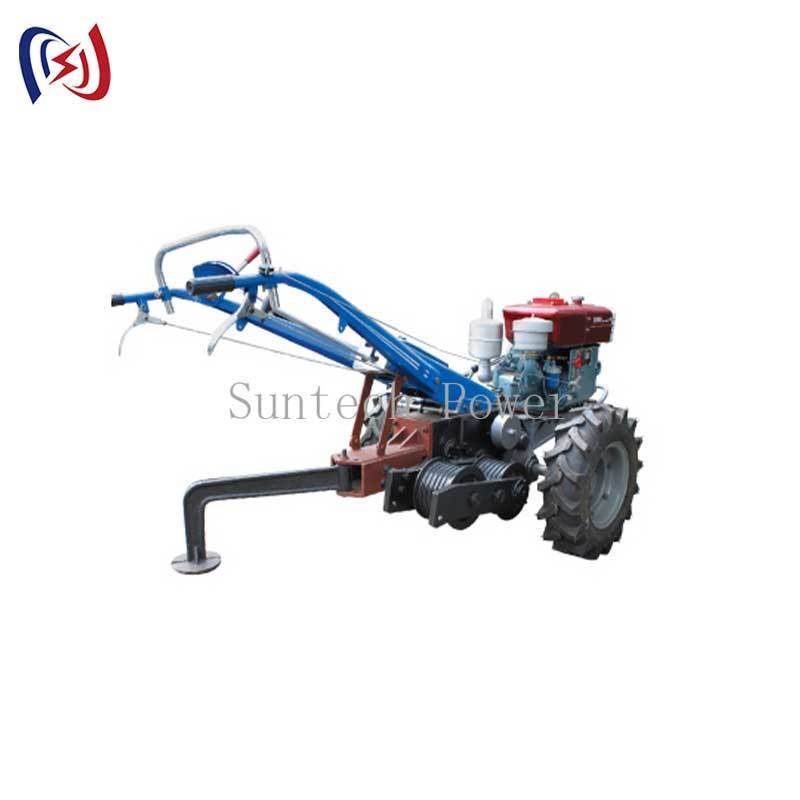

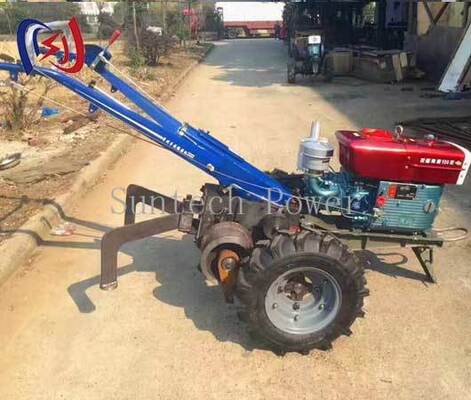

3 Ton Pulling Force PTO Driven Walking Tractor Winch 15HP Tractor Driven Winch for Slope Farming
Product Details:
| Place of Origin: | Ningbo, Zhejiang, China |
| Brand Name: | Suntech |
| Certification: | ISO 9001:2015, CE |
| Model Number: | 12-A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export-grade plywood case with steel strapping, moisture-proof film and shock-absorbing cushion |
| Delivery Time: | 3-5 working days for stock, 15-25 days for bulk production |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 3000 Sets per Month |
|
Detail Information |
|||
| Product Name: | Walking Tractor Winch | Item No.: | 09171-09172 |
|---|---|---|---|
| Model: | 12-A / 12-B | Power: | 15HP |
| Pulling Force: | 3 Ton | Weight: | 550-600 KG |
| Warranty: | 1 Year | Ground Clearance: | 150 Mm |
| Wheel Base: | 1040 Mm | Travel Speed: | 3-13 KM/H |
| Drive Type: | PTO Driven | ||
| Highlight: | 3 Ton Pulling Force Walking Tractor Winch,PTO Driven Tractor Driven Winch,15HP Walking Tractor Winch |
||
Product Description
Walking Tractor Winch 12-A — Controlled Load Handling on Slopes, Orchards and Farm Tracks
The Suntech 12-A walking tractor winch is a PTO-driven cable winch designed by people who spend their working days on hillside farms. It turns the pulling power of an ordinary walking tractor into steady, predictable traction for hauling timber, harvest baskets, irrigation pipe and building materials where vehicles cannot reach.
Field Experience Behind Every Unit
For more than a decade our team has worked directly with terrace farmers, orchard managers and small-scale loggers across Zhejiang and neighbouring provinces. Feedback from those seasons shaped the 12-A: stronger drum anchoring, a shorter cable path to reduce fouling, and a mounting bracket that fits the common Chinese and imported walking tractor frames without welding.
Engineering You Can Trace
The winch couples to the tractor power take-off through a hardened gearset that produces up to 3 tonnes of pulling force, spread across four forward gears and two reverse gears. A self-lubricating bearing set and protected grease points keep service intervals long, while the reinforced steel frame absorbs the shock loads that occur when a load shifts on steep ground.
Technical Specifications
| Item No. | Model | Ground Clearance (mm) | Wheel Base (mm) | Power (HP) | Speed (RPM) | Travel Speed (KM/H) | Outline Size (mm) | Weight (KG) |
| 09171 | 12-A | 150 | 1040 | 15 | 2000 | 3–13 | 2670*1040*1300 | 550 |
| 09172 | 12-B | 150 | 1040 | 15 | 2000 | 3–13 | 2670*1040*1300 | 600 |
Gear-by-gear traction reference:
| Gear | I | II | III | IV | Reverse I | Reverse II |
| Traction force | 60 | 37 | 20 | 12 | / | / |
| Traction speed (m/min) | 11.7 | 18.9 | 34.4 | 55.6 | 6.2 | 21.3 |
How We Control Quality
Every unit is assembled, run under load and inspected before it is packed. The cable drum, gear engagement and brake action are checked individually, and each winch carries a serialised inspection record. Our workshop operates to ISO 9001:2015 procedures, and the 12-A is built to meet CE machinery-safety requirements for agricultural equipment.
Standards, Documentation and Support
Orders ship with an illustrated operation manual, a mounting-hardware kit and a capacity reference card. A 12-month warranty covers manufacturing defects, and our technical team answers fitting, cable selection and maintenance questions in English, Spanish and Chinese.
Where the 12-A Works Best
- Terrace and hillside farming where tractors cannot drive
- Orchard management and pruning-residue clearing
- Small-scale forestry and firewood extraction
- Rural material transport and equipment recovery
- Irrigation pipe and pump handling
Choosing the Right Configuration
The 12-A suits operators who want a compact 550 kg unit, while the 12-B is the heavier 600 kg variant for continuous-duty pulling. PTO-driven, hydraulic and electric drive options are available; cable length is supplied to order. Tell us your tractor model and the loads you handle, and we will recommend the right gear ratio and cable diameter.
Frequently Asked Questions
Does it fit my walking tractor? The standard mounting bracket suits the common 12–18 HP walking tractor frames. Share your frame dimensions and we will confirm the adapter.
How much can it pull? Up to 3 tonnes of controlled pulling force, delivered across four forward gears for precise load management.
What maintenance is needed? Grease the marked points at the interval in the manual and keep the cable clean; the self-lubricating bearings need no routine service.
Request a Quotation
Send us your terrain, tractor model and typical load weight. We will reply with a configuration, lead time and shipping options. Contact our team for a factory-direct quotation today.
