22KW Tractor Drawn Winch Hydraulic PTO Winch with 4 Ton Pulling Capacity for Forestry and Land Clearing
Product Details:
| Place of Origin: | Ningbo, Zhejiang, China |
| Brand Name: | Suntech |
| Certification: | ISO 9001:2015 |
| Model Number: | SX4-V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export-grade plywood case with steel strapping, moisture-proof film and shock-absorbing cushion |
| Delivery Time: | 7-15 working days for production |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 2000 Sets per Month |
|
Detail Information |
|||
| Product Name: | Tractor Drawn Winch | Item No.: | 08126 |
|---|---|---|---|
| Model: | SX4-V1 | Power: | 22KW |
| Pulling Capacity: | 4 Ton | Traction Force: | 20-40 KN |
| Traction Speed: | 11-38 M/min | Groove Diameter: | 300 Mm |
| Number Of Grooves: | 6 | Cable Length: | 60 M Galvanized Steel |
| Drive Type: | Hydraulic / PTO | Weight: | 1740 KG |
| Warranty: | 1 Year | ||
| Highlight: | 22KW Tractor Drawn Winch,4 Ton Pulling Capacity Hydraulic PTO Winch,Hydraulic PTO Drive Cable Winch Machine |
||
Product Description

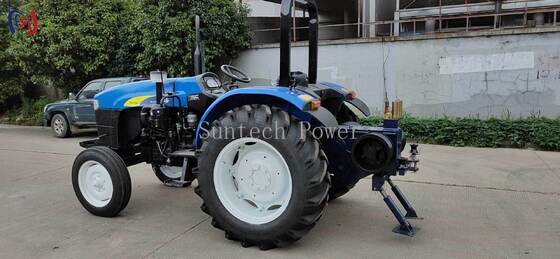

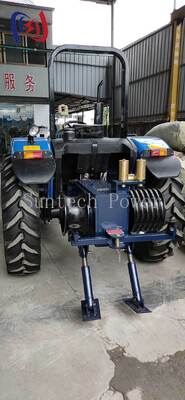

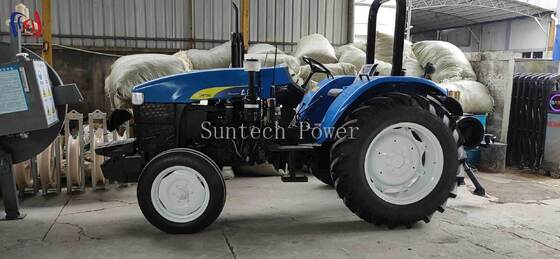

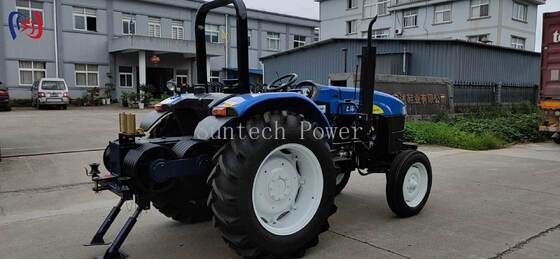

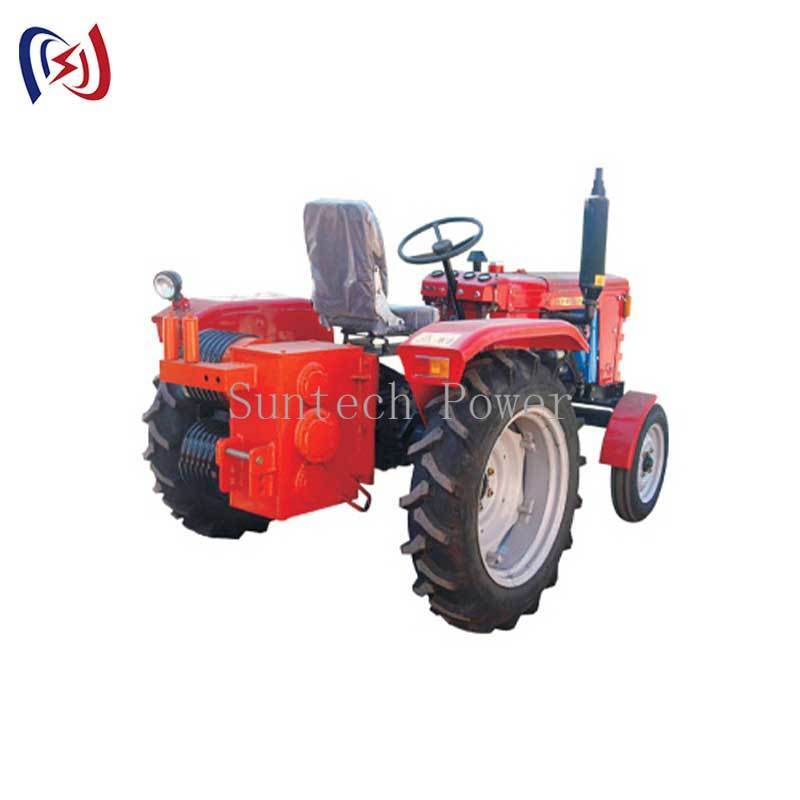

Tractor Drawn Winch SX4-V1 — Heavy-Duty Hydraulic and PTO Pulling Power for Forestry and Land Work
The Suntech SX4-V1 tractor drawn winch is a 22KW heavy-duty pulling system built for forestry extraction, land clearing and heavy equipment recovery. It runs from either a tractor hydraulic circuit or the PTO shaft, so operators can keep working with the power source already on site.
Developed With the Crews Who Use It
This model grew out of seasons spent alongside logging crews and land-management contractors who needed a winch that would not stall mid-pull or creep when the load changed. Their feedback shaped the dual-power layout, the automatic brake that holds the load the moment the operator stops, and a universal mounting frame that fits the majority of common tractor models.
How the SX4-V1 Performs
A three-speed forward gearbox delivers up to 40KN of traction force with smooth control across the range, while the deep six-groove drum (300mm groove diameter) holds 60m of galvanised steel cable and reduces cable fouling during long pulls. Line speed under load reaches 12m/min, and the reinforced frame with anti-corrosion coating is rated IP65 for all-weather operation.
Technical Specifications
| Item Number | 08126 | Power | 22KW | Model | SX4-V1 |
| Gear | I | II | III | Reverse I | – |
| Traction Force (KN) | 40 | 30 | 20 | – | – |
| Traction Speed (m/min) | 12 | 21 | 38 | 11 | – |
| Groove Diameter | Φ300mm | ||||
| Number of Grooves | 6 | ||||
| Weight | 1740KG | ||||
| Outline Size | 2900 x 1400 x 1440mm | ||||
Power options: Hydraulic (200 bar) or PTO (540 / 1000 rpm). Cable: 60m galvanised steel. Line speed under load: 12m/min. Noise level below 65dB.
Testing and Quality Control
Each winch is assembled, run under rated load and inspected before packing. We verify gear engagement, brake holding force and drum alignment on every unit, and each shipment carries a serialised inspection record. Our workshop follows ISO 9001:2015 quality procedures, and the SX4-V1 is manufactured to meet CE machinery-safety requirements for agricultural and forestry equipment.
Documentation, Warranty and Support
Units ship with an illustrated operation and maintenance manual, a mounting hardware kit and a load-rating card. A 12-month warranty covers manufacturing defects, and our technical team answers installation, hydraulic hook-up and cable selection questions in English, Spanish and Chinese.
Where It Works Best
- Forestry log extraction on steep and soft ground
- Land clearing, rehabilitation and brush removal
- Heavy equipment recovery and vehicle extraction
- Agricultural field and drainage operations
- Utility and construction pulling tasks in remote sites
Choosing the Right Setup
Choose the PTO version where a 540 or 1000 rpm tractor shaft is available; choose the hydraulic version (200 bar) when you want finer speed control from the tractor's own circuit. Tell us your tractor model, terrain and typical load weight, and we will recommend the right gear range and cable diameter.
Frequently Asked Questions
Can it run from my tractor? Yes. The universal mounting frame fits most common tractor models, and the unit accepts either hydraulic or PTO input.
What is the pulling capacity? 4 tonnes (20–40KN), with three forward gears for precise load control.
How is the load held when I stop? An automatic brake locks the drum the moment the operator releases the control, preventing load creep on slopes.
Request a Quotation
Send us your tractor model, terrain and typical load weight. We will reply with a recommended configuration, lead time and shipping options. Contact our team for a factory-direct quotation today.
