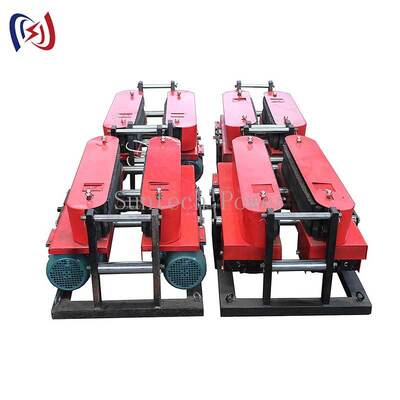

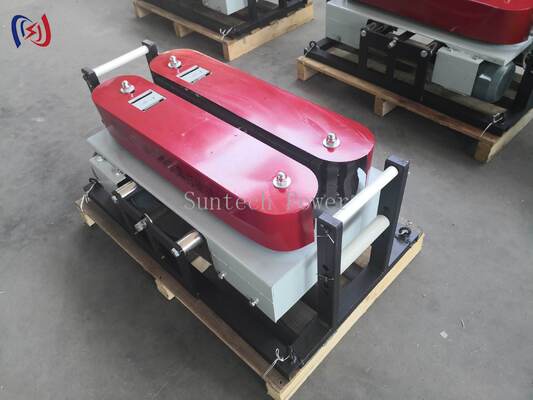

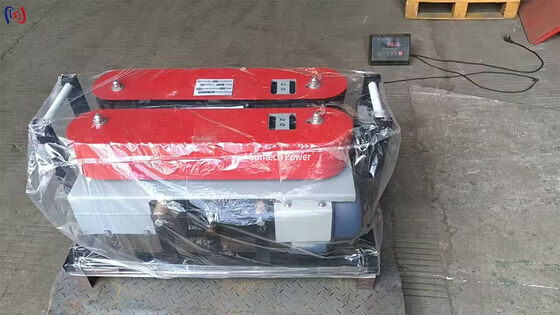

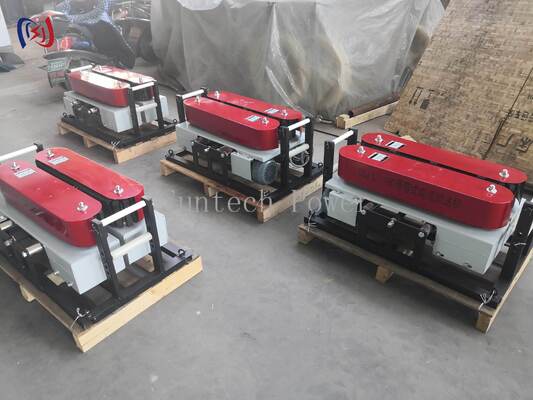

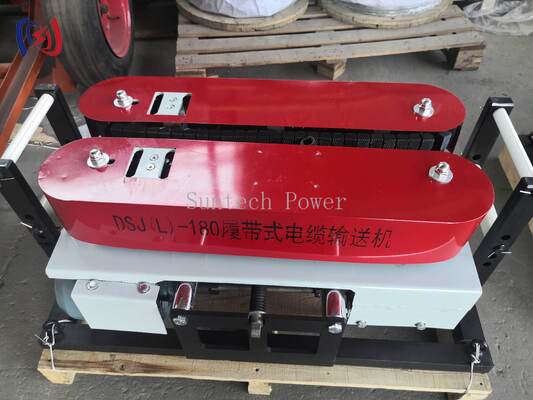

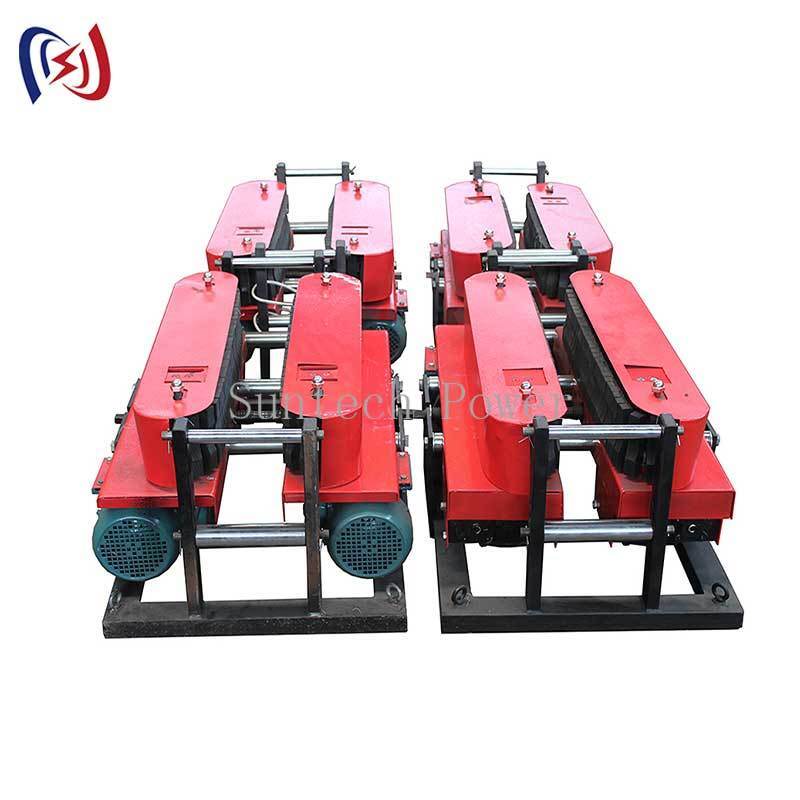

8KN Pulling Force 380V Dual Motor Cable Conveyer Electric Cable Winch Machine for 25-180mm Cable Laying
Product Details:
| Place of Origin: | Ningbo, Zhejiang, China |
| Brand Name: | Suntech |
| Certification: | ISO 9001:2015 |
| Model Number: | DCS-8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export-grade plywood case with steel strapping, moisture-proof film and shock-absorbing cushion |
| Delivery Time: | 3-7 working days for production |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 3000 Sets per Month |
|
Detail Information |
|||
| Product Name: | Electric Cable Conveyer | Item No.: | 21105 |
|---|---|---|---|
| Model: | DCS-8 | Power Supply: | 380V |
| Motor Power: | 1.5 KW X 2 | Pull Force: | 8 KN |
| Clamping Force: | <=2.7 KN | Conveying Speed: | 7 M/min |
| Cable Diameter: | 25-180 Mm | Outline Size: | 1220 X 730 X 480 Mm |
| Weight: | 290 KG | Warranty: | 1 Year |
| Highlight: | 8KN Pulling Force Cable Conveyer,380V Dual Motor Cable Winch Machine,25-180mm Cable Diameter Cable Conveyer |
||
Product Description
Electric Cable Conveyer DCS-8 — 380V Dual-Motor Pulling Power for Power Plant and Industrial Cable Laying
The Suntech DCS-8 electric cable conveyer is a motorised cable handling and pulling machine built for power plant construction, substation upgrades and heavy industrial wiring. Two 1.5KW motors deliver up to 8KN of controlled pull force at a steady 7 m/min, so crews can move large-diameter cable without manual dragging.
Shaped by Real Installation Crews
This range was developed with electrical contractors working on 380V industrial projects, where reels are heavy, trenches are tight and downtime is expensive. Their input produced three design choices that matter on site: a clamping force capped at 2.7KN to protect cable jackets, a compact footprint that fits through switchgear rooms and cable trenches, and a single-operator control layout that keeps the pull steady from the first metre to the last.
How the Machine Works
Twin gear motors drive hardened conveying rollers that grip the cable without crushing it. Clamping force is limited to 2.7KN, and pull force reaches 8KN on the DCS-8, so cables are drawn smoothly along trays and ducts rather than dragged. Adjustable guides accept cable diameters from 25mm to 180mm, and the guarded drive housing protects moving parts from site debris.
Technical Specifications
| Item No. | Model | Power (KW) | Clamping Force | Pull Force (KN) | Conveying Speed (m/min) | Outline Size (mm) | Cable Diameter (mm) | Power Supply | Weight (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 21103 | DCS-5 | 1.1 × 2 | <=2.7KN | 6 | 7 | 980 × 500 × 400 | 25–180 | 380V | 180 |
| 21105 | DCS-8 | 1.5 × 2 | <=2.7KN | 8 | 7 | 1220 × 730 × 480 | 25–180 | 380V | 290 |
| 21104 | DCS-Z5 | 2.2 × 2 | <=2.7KN | 5 | 7 | 930 × 500 × 400 | 25–160 | 380V | 150 |
| 21102 | DCS-110 | 4 | <=2.7KN | 6 | 7 | 1050 × 530 × 550 | 25–180 | GX160 | 190 |
Testing and Quality Control
Each conveyer is assembled, run under load and inspected before packing. We test pull force, clamping force and roller alignment on every unit, and the drive housing is checked for guard integrity. Production follows ISO 9001 quality procedures, and machines are built to relevant machinery and electrical safety requirements.
Documentation, Warranty and Support
Units ship with an illustrated operation and maintenance manual, a wiring and control reference and a spare wear-part list. A 12-month warranty covers manufacturing defects, and our technical team advises on roller selection, cable routing and control wiring in English, Spanish and Chinese.
Where It Works Best
- Power plant and substation cable installation
- Industrial plant wiring and control cable runs
- Large-diameter power cable laying in trays and ducts
- Data centre and heavy electrical infrastructure projects
- Utility maintenance and cable recovery work
Choosing the Right Model
The DCS-8 suits the heaviest pulls at 8KN, while the DCS-5 and DCS-Z5 cover lighter 5–6KN duties and narrower cable ranges. The DCS-110 runs on a GX160 petrol engine for sites without a 380V supply. Tell us your cable diameter, run length and available power, and we will recommend the right model.
Frequently Asked Questions
Will it damage the cable jacket? No. Clamping force is capped at 2.7KN and the rollers grip without crushing, so jackets and conductors stay intact.
What cable sizes does it handle? 25mm to 180mm diameter on most models; the DCS-Z5 covers 25–160mm.
Can one person run it? Yes. The single-operator control layout and guarded rollers allow one crew member to manage the pull.
Request a Quotation
Send us your cable diameter, run length and site power supply. We will reply with a recommended model, lead time and shipping options. Contact our team for a factory-direct quotation today.
