6KN 8KN Cable Winch Machine Conveyer Transmission Line Stringing Tools
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | DCS-5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Cable Conveyer | Item No.: | 21102-21105 |
|---|---|---|---|
| Power: | 380V | Clamping Force: | <2.7KN |
| Pull Force: | 5/6/8KN | Conveying Speed: | 7M/Min |
| Diameter Of Cable: | 25-180mm | Weight: | 150-290KG |
| Warranty: | 1 Year | ||
| Highlight: | 6KN Cable Winch Machine,8KN Cable Winch Machine,8KN Cable Conveyer |
||
Product Description
Cable Conveyer Transmission Line Stringing Tools
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
Feature:The machine is suitable for urban power network reconstruction and new laying of cables,especially suitable for long distance cable release.

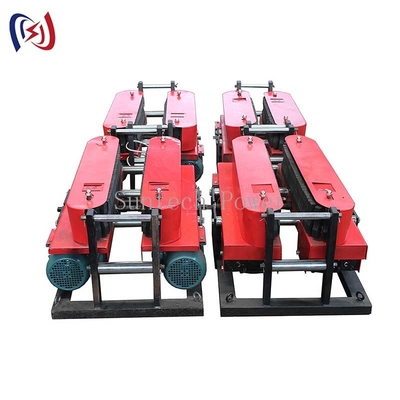

The machine can be pushed by single machine,and also can be connected in series with a machine,and the synchronization of several machines is controlled by a control box.

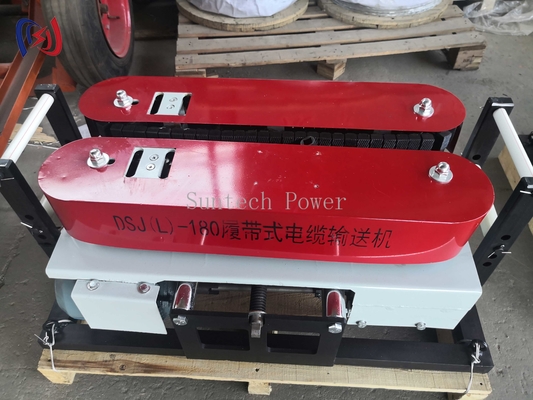

The conveyor wheel is made of rubber die casting,which will not damage the cable sheath,and adjust the center distance according to the external diameter of the cable.

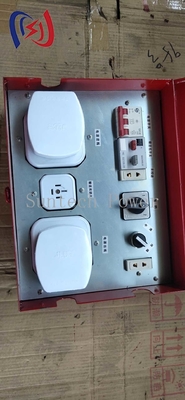

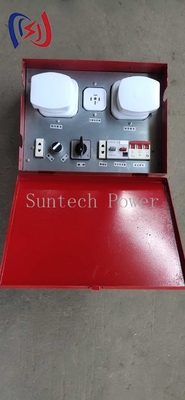

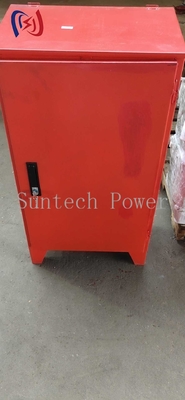

DCS-Z5 adopts variable frequency servo motor and is controlled by intelligent control box.It has the functions of speed setting,monitoring,speed regulation,meter counting and so on.
DCS-2 adopts gasoline power to facilitate field construction.
| Item No. | Model | Power(KW) | Clamping force(KN) | Pull force(KN) |
Conveying speed (M/MIN) |
Outline size(MM) | Diameter fo cable(MM) | Power | Weight(KG) |
| 21103 | DCS-5 | 1.1*2 | <=2.7KN | 6 | 7 | 980*500*400 | 25-180 | 380V | 180 |
| 21105 | DCS-8 | 1.5*2 | <=2.7KN | 8 | 7 | 1220*730*480 | 25-180 | 380V | 290 |
| 21104 | DCS-Z5 | 2.2*2 | <=2.7KN | 5 | 7 | 930*500*400 | 25-160 | 380V | 150 |
| 21102 | DCS-110 | 4 | <=2.7KN | 6 | 7 | 1050*530*550 | 25-180 | GX160 | 190 |
