Commercial-Grade Belt Drive Winch - 10,000+ Cycles Before Maintenance Required
Product Details:
| Place of Origin: | Ningbo |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | JJQ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case |
| Delivery Time: | 3-7days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 300 PCS/Month |
|
Detail Information |
|||
| Name: | Powered Winch(belt Drive) | Item No.: | 09121-09125A |
|---|---|---|---|
| Model: | JJQ-30-JJQ-80 | Tractive Force: | 3-8T |
| Power: | 4.04-9.06KW | Weight: | 82-230KG |
Product Description
Commercial-Grade Belt Drive Winch - 10,000+ Cycles Before Maintenance Required
The Powered Winch (Belt Drive) is a high-performance lifting and pulling system designed for demanding industrial, construction, and recovery applications. Featuring a heavy-duty belt drive mechanism, this winch delivers smoother operation and 30% more power than traditional gear drive models, with a 5000lb (2268kg) load capacity. The 12V/24V electric motor provides reliable performance in all conditions, while the automatic brake system ensures safe load holding.
Key Features:
✔ Advanced Belt Drive System - Reduced noise and vibration for smoother operation
✔ Dual-Power Options - Compatible with both 12V and 24V power systems
✔ Automatic Braking - Holds loads securely without manual intervention
✔ Thermal Protection - Prevents motor burnout during extended use
✔ Weather-Resistant Design - IP65-rated enclosure protects against dust and water
Performance Benefits:
- 30% faster line speed compared to gear drive winches
- 10,000+ operating cycles before first maintenance required
- 5000lb pulling capacity for heavy-duty applications
- 50% quieter operation than standard winches
Technical Specifications:
- Model: JJQ-30
- Load Capacity: 8T
- Motor Power: 4-9KW
- Compliance: ISO 9001, CE, ANSI B30.7
- Warranty: 1 years
Ideal Applications:
- Construction site material handling
- Off-road vehicle recovery
- Marine and boat launching
- Industrial maintenance and repair
|
Item number |
Model |
Rotation direction |
Gear
|
rotational speed () |
Traction speed (m/min) |
Tractive force (T) |
Power (KW) |
Outline size (mm) |
Weight (kg) |
| 09121 |

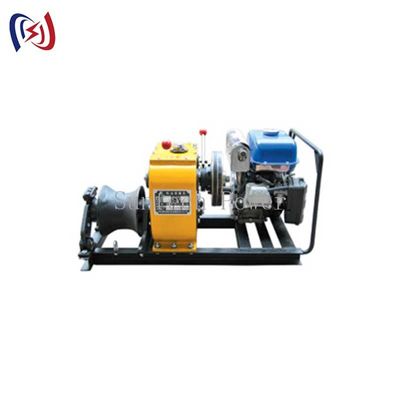

JJQ-3Q 6HP Gasoline engine |
corotation |
Ⅰ Slow |
9.0 |
4.0 | 3.0 | 4.04 | 840x450x500 | 82 |
|
Ⅱ Fast |
16.0 | 6.6 | 1.8 | 780x450x500 | 85 | ||||
|
reversal |
Reverse |
7.5 | 3.3 |
No lifting |
|||||
| 09121A |

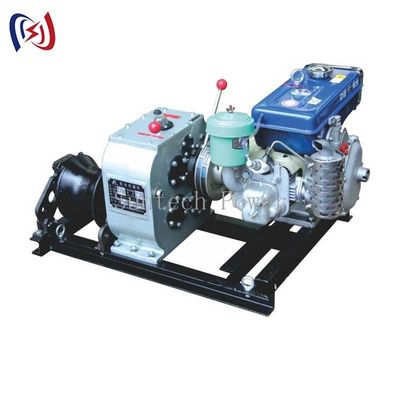

JJC-30 170F Diesel engine |
corotation |
Ⅰ Slow |
11.5 |
5.0 | 3.0 | 2.94 | 840x600x500 | 108 |
|
Ⅱ Fast |
21.0 | 9.0 | 1.8 | ||||||
|
reversal |
Reverse |
10.0 | 4.5 |
No lifting |
|||||
| 09121B |

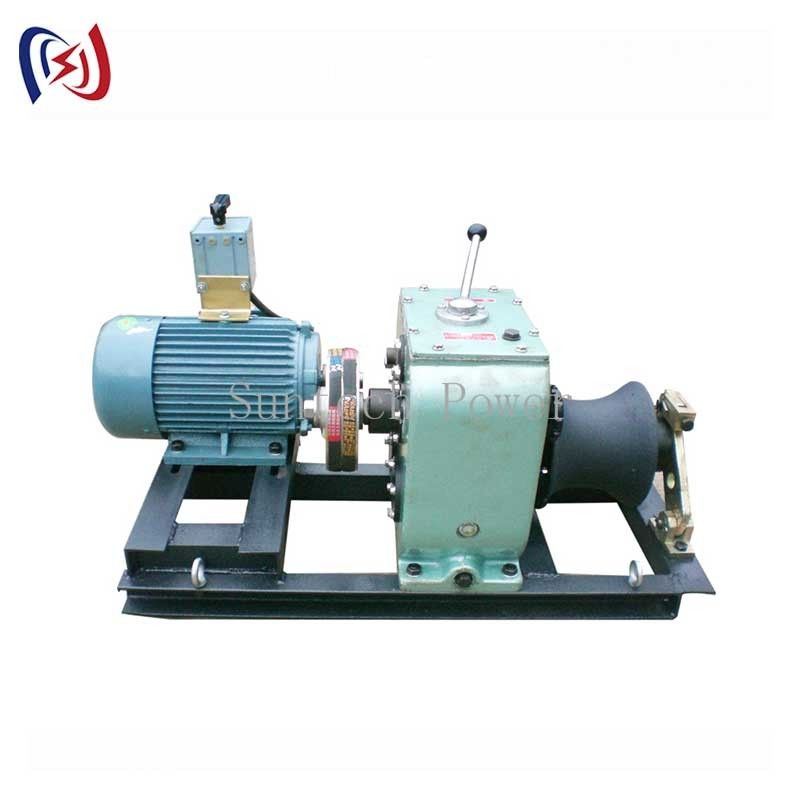

JJD-30 3KW Electromotor |
corotation |
Ⅰ Slow |
8.5 |
4.0 | 3.0 | 3.00 | 770x600x460 | 108 |
|
Ⅱ Fast |
10.5 | 6.5 | 1.8 | ||||||
|
reversal |
Reverse |
7.0 | 3.0 |
No lifting |
|||||
| 09123 |
JJQ-50 9HP Gasoline engine |
corotation |
Ⅰ Slow |
6.5 |
4.0 | 5.0 | 6.61 | 1000x550x520 | 135 |
|
Ⅱ Fast |
16.0 | 9.0 | 2.2 | ||||||
|
reversal |
Reverse |
7.0 | 4.0 |
No lifting |
|||||
| 09123A |
JJC-50 6.6HP Diesel engine |
corotation |
Ⅰ Slow |
8.0 |
4.5 | 5.0 | 4.41 | 1000x750x600 | 168 |
|
Ⅱ Fast |
19.0 | 11.0 | 2.3 | ||||||
|
reversal |
Reverse |
10.0 | 5.5 |
No lifting |
|||||
| 09123B |
JJD-50 4KW Electromotor |
corotation |
Ⅰ Slow |
5.5 |
3.5 | 5.0 | 4.00 | 1000x850x520 | 160 |
|
Ⅱ Fast |
14.0 | 8.0 | 3.0 | ||||||
|
reversal |
Reverse |
7.0 | 4.0 |
No lifting |
|||||
| 09125 |
JJQ-80 13HP Gasoline engine |
corotation |
Ⅰ Slow |
5 | 3 | 8 | 9.60 | 1000x550x520 | 168 |
|
Ⅱ Fast |
9 | 5 | 4.5 | ||||||
|
reversal |
Reverse |
5 | 3 |
No lifting |
|||||
| 09125A |

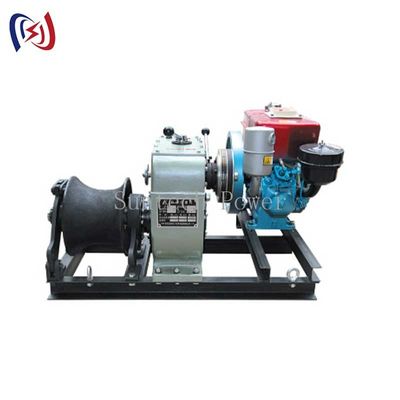

JJC-80 10.5HP Diesel engine |
corotation |
Ⅰ Slow |
7 | 4 | 8 | 7.86 |
1000x750x630 | 230 |
|
Ⅱ Fast |
13 |
7.5 | 4 | ||||||
|
reversal |
Reverse |
6.5 | 3.7 |
No liftin |
