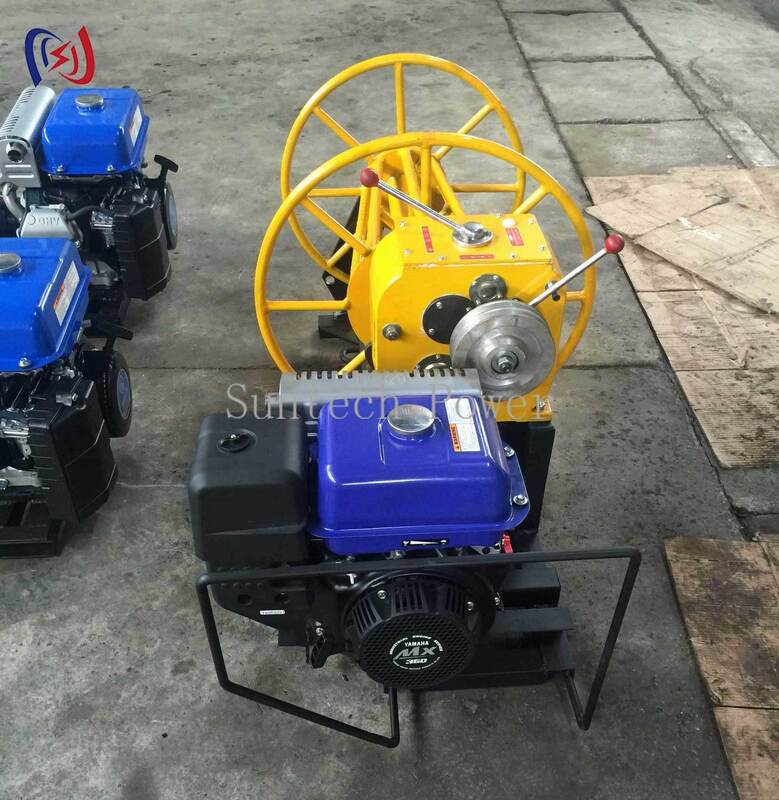

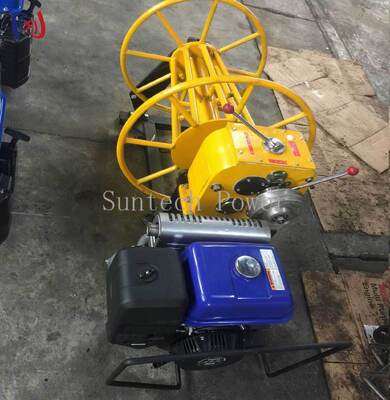

30KN Cone Take Up Machine with Yamaha Gasoline Engine and 7.5-28 m/min Speed for Cable Winding Winch
Product Details:
| Place of Origin: | Ningbo, Zhejiang, China |
| Brand Name: | Suntech |
| Certification: | ISO 9001:2015 |
| Model Number: | SFJ-30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export-grade plywood case with steel strapping, moisture-proof film and shock-absorbing cushion |
| Delivery Time: | 3-7 working days for production |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 3000 Sets per Month |
|
Detail Information |
|||
| Product Name: | Cone Take Up Machine | Item No.: | 08154 |
|---|---|---|---|
| Model: | SFJ-30 | Motive Power: | Yamaha Gasoline Engine |
| Rated Traction: | 30 KN | Traction Speed: | 7.5-28 M/min |
| Weight: | 185 KG | Warranty: | 1 Year |
| Highlight: | 30KN Cone Take Up Machine,Yamaha Gasoline Engine Cable Winding Winch,7.5-28 m/min Cable Take Up Machine |
||
Product Description
Industrial Cone Take Up Machine SFJ-30 — Gasoline-Powered Take Up for Continuous Production Lines
The Suntech SFJ-30 cone take up machine winds wire, cable and conductor onto a tapered mandrel to form a stable, self-supporting coil that is easy to handle, store and dispense. With 30KN of rated traction and a Yamaha gasoline engine, it is built to keep pace with continuous cable production and heavy on-site spooling.
Engineered With Cable Producers
This range was developed with cable manufacturers and installation teams who needed the take-up stage to keep up with the line without stretching or deforming freshly made cable. Their feedback shaped the progressive tension control, the reinforced cone mandrel and the compact frame that can be re-sited along a production hall or loading bay.
How the Take Up Works
A gasoline engine drives the cone mandrel through a geared transmission with progressive tension control, so wrap speed follows the incoming cable instead of fighting it. The tapered cone forms self-supporting coils that will not collapse in transit, while consistent layered wraps prevent kinks, twists and crush points that weaken conductors and damage insulation.
Technical Specifications
| Item No. | Model | Rated Traction (KN) | Traction Speed (m/min) | Motive Power | Weight (KG) |
|---|---|---|---|---|---|
| 08151 | SFJ-10 | 10 | 13.3–24.3 | Gasoline Engine | 160 |
| 08153 | SFJ-20 | 20 | 7.5–14 | Gasoline Engine | 180 |
| 08154 | SFJ-30 | 30 | 7.5–28 | Yamaha Gasoline Engine | 185 |
Testing and Quality Control
Each machine is assembled, run on the line and inspected before packing. We check engine throttle response, tension-control accuracy, mandrel alignment and frame rigidity on every unit. Production follows ISO 9001 quality procedures, and machines are built to relevant machinery safety requirements.
Documentation, Warranty and Support
Units ship with an illustrated operation and maintenance manual, an engine service guide and a coil-diameter reference chart. A 12-month warranty covers manufacturing defects, and our technical team advises on cone sizing, coil diameter and tension settings in English, Spanish and Chinese.
Where It Works Best
- Continuous cable and wire production lines
- Final winding and coil forming after extrusion or testing
- Cable take up and re-spooling on installation sites
- Tidy storage of off-cuts, leftovers and reusable lengths
- Coiling for transport and inventory measurement
Choosing the Right Model
The SFJ-10 suits lighter wire at higher speed, the SFJ-20 balances 20KN of traction with moderate speed, and the SFJ-30 provides 30KN with a Yamaha engine for the heaviest continuous production. Tell us your cable diameter, line speed and coil size, and we will recommend the right model and mandrel.
Frequently Asked Questions
Will it stretch freshly made cable? No. Progressive tension control matches wrap speed to the incoming cable, preventing over-pull and deformation.
What coil shape does it produce? The tapered mandrel forms stable, self-supporting coils that stay intact in storage and transport.
Can it be moved along the line? Yes. At 160–185kg on a compact frame, the unit can be repositioned as the production layout changes.
Request a Quotation
Send us your cable diameter, line speed and coil size. We will reply with a recommended model, mandrel size and shipping options. Contact our team for a factory-direct quotation today.
