2000 - 3600RPM Cable Winch Machine 9KW Double Drum Winch Transmission Line
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | JJCS-50J |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Double Drum Winch | Item No.: | 09151-09162 |
|---|---|---|---|
| Engine Power: | 6.3-9KW | Engine Speed: | 2000-3600RPM |
| Drum Bottom Of Groove Diameter: | 230-300mm | Weight: | 270-700KG |
| Warranty: | 1 Year | ||
| Highlight: | 2000RPM Cable Winch Machine,3600RPM Cable Winch Machine,9KW Double Drum Winch |
||
Product Description

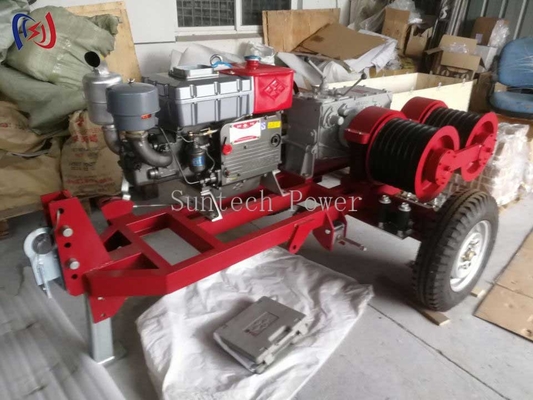

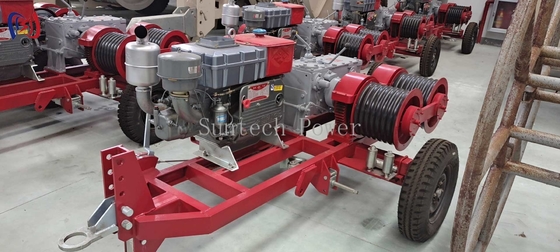

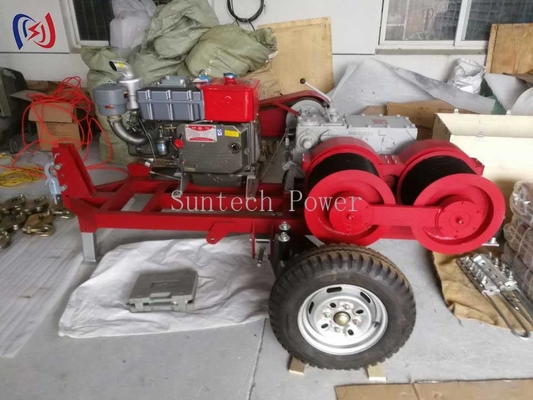

Double Drum Winch Transmission Line Stringing Tools
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
Uses:Suitable for the construction of the tower line,traction line,tight line operation,laying cable.
Explain:Power can be configured according to used requirements.
| Item No. | 09151 | 09152 | 09162 | |
| Model | JJCS-50J | JJQS-50J | JJCS-50T | |
| Engine | Model |
KF186A Diesel Engine |

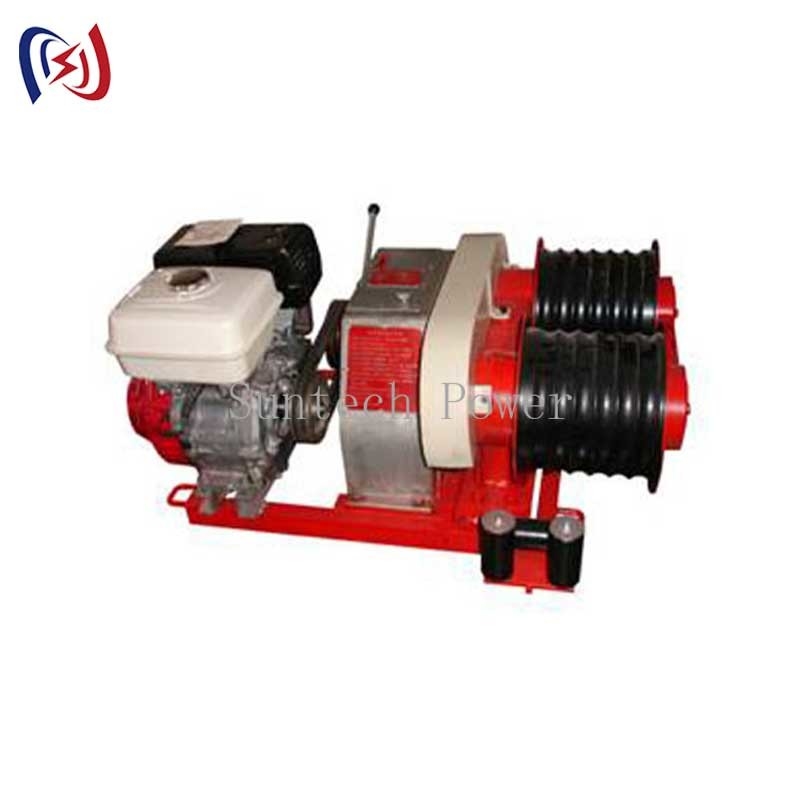

Honda 390 Gasoline Engine |
S195G Diesel Engine |
| Power(KW) | 6.3 | 6.6 | 9 | |
| Speed(RPM) | 2600 | 3600 | 2000 | |
|
Pull force (KN)/ Speed (M/MIN) |
Slow | 50*6.0,30/10 | 50/6.0,30/10 | 50/3.1,40/9.6 |
| Moderate | / | / | 45/7.1,17/22.3 | |
| Fast | 13/23,10/30 | 13/23,10/30 | 33/11.3,10/35.6 | |
| Reverse | -/5,-/17 | -/5,-/17 | -/7.35 | |

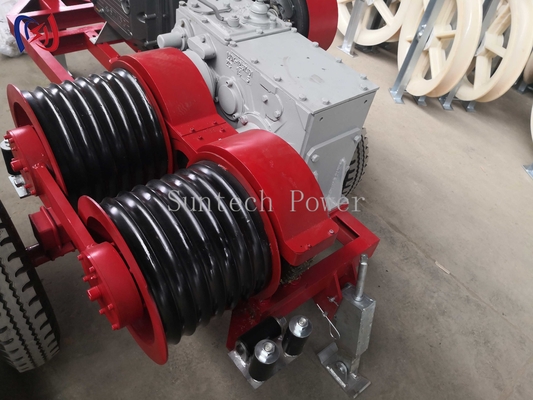

| Drum bottom of groove diameter | Φ230 | Φ230 | Φ300 | |
| outline size(MM) | 1280*770*600 | 1280*770*600 | 2440*1300*1140 | |
| Weight(KG) | 280 | 270 | 700 | |
