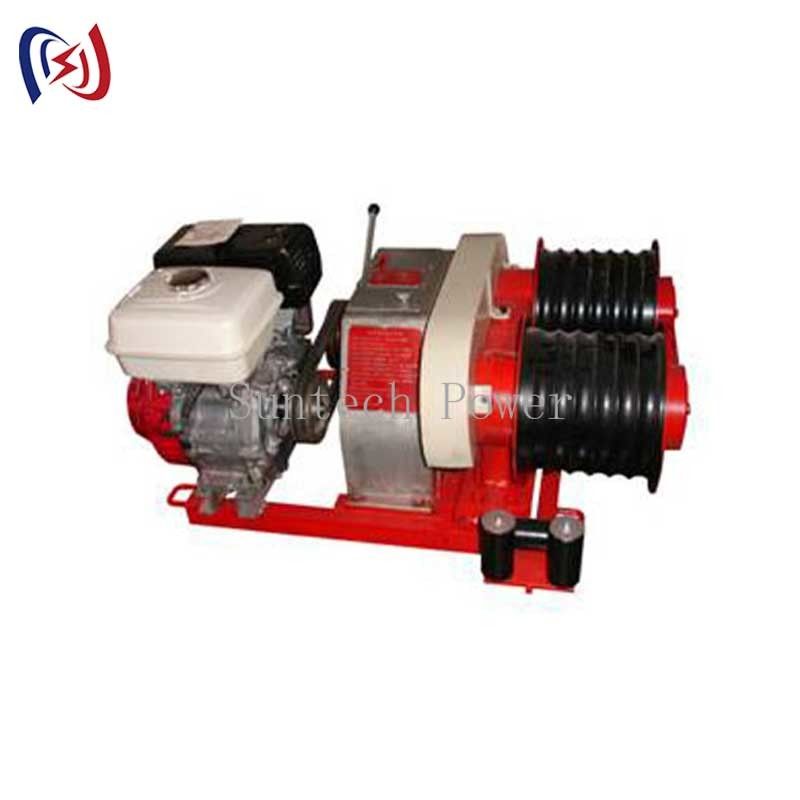

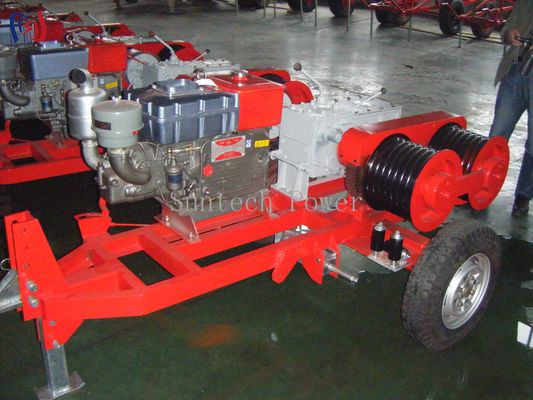

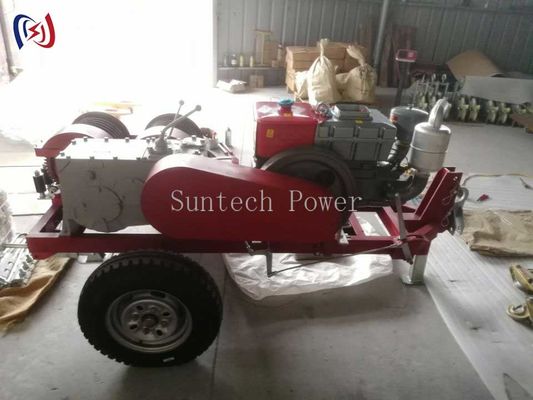

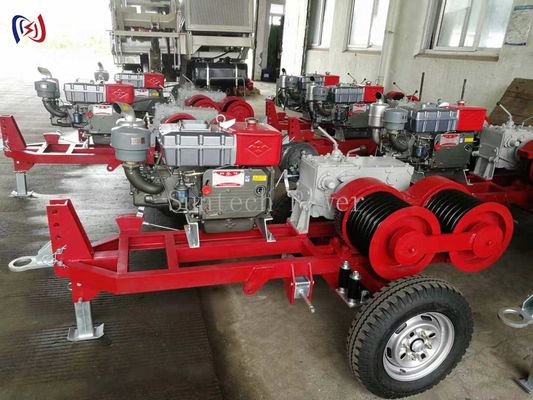

Multi-Function Twin Drum Winch - Ideal for Towing, Dredging & Cable Lay Operations
Product Details:
| Place of Origin: | Ningbo |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | JJCS-50J |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 2000 PCS/Month |
|
Detail Information |
|||
| Name: | Double Drum Winch | Item No.: | 09151-09162 |
|---|---|---|---|
| Model: | JJCS-50J-JJCS-50T | Engine: | Diesel Engine/Gasoline Engine |
| Power: | 6.3-9KW | Speed: | 2000-3600RPM |
| Drum Bottom Of Groove Diameter: | 230-300mm | Weight: | 270-700KG |
Product Description
Multi-Function Twin Drum Winch - Ideal for Towing, Dredging & Cable Lay Operations
The Double Drum Winch is an industrial-grade lifting and pulling system engineered for complex operations requiring simultaneous load handling. Featuring two independent 10HP motors, this winch delivers 15,000lb (6,804kg) combined capacity with precision control over both drums. The dual braking system ensures safe load management, while the modular design allows customizable configurations for specialized applications.
Key Innovations:
✔ Smart Load Balancing - Automatic weight distribution between drums (±2% accuracy)
✔ All-Terrain Mobility - Integrated trailer hitch and 360° rotating base
✔ Advanced Safety - Dual emergency stops + overload sensors on each drum
✔ Weatherproof Construction - Marine-grade aluminum housing (IP68 rating)
Performance Advantages:
- 60ft/min (18m/min) line speed - 60% faster than single-drum competitors
- 30,000+ operating cycles before first maintenance service
- 5T max capacity (7,500lb per drum) for extreme loads
- Real-time load monitoring through Bluetooth-connected display
Technical Specifications:
- Model: JJCS-50J
- Drum Capacity: 2 x 500ft (150m) galvanized steel cables
- Line Speed: 60ft/min (18m/min) no load
- Control System: CAN-BUS with wireless remote (300ft range)
- Compliance: ISO 9001, DNV-GL, ABS
- Warranty: 1 years
Critical Applications:
- Offshore platform anchor handling
- Mining conveyor system maintenance
- Bridge cable tensioning operations
- Heavy equipment recovery in disaster zones
| Item No. | 09151 | 09152 | 09162 | |
| Model | JJCS-50J | JJQS-50J | JJCS-50T | |
| Engine | Model |
KF186A Diesel Engine |
Honda 390 Gasoline Engine |
S195G Diesel Engine |
| Power(KW) | 6.3 | 6.6 | 9 | |
| Speed(RPM) | 2600 | 3600 | 2000 | |
|
Pull force (KN)/ Speed (M/MIN) |
Slow | 50*6.0,30/10 | 50/6.0,30/10 | 50/3.1,40/9.6 |
| Moderate | / | / | 45/7.1,17/22.3 | |
| Fast | 13/23,10/30 | 13/23,10/30 | 33/11.3,10/35.6 | |
| Reverse | -/5,-/17 | -/5,-/17 | -/7.35 | |
| Drum bottom of groove diameter | Φ230 | Φ230 | Φ300 | |
| outline size(MM) | 1280*770*600 | 1280*770*600 | 2440*1300*1140 | |
| Weight(KG) | 280 | 270 | 700 | |
